Bi-Fold Guide 45

PART No 22.1148
$39.93 each
PART No: 22.1148$39.93 each
  • Click here for a complete design example
  • Bi-Fold doors are particularly useful when large doors will obstruct aisle ways or in tight spaces
PART No: 22.1148 Category:

Technical Data / Items Supplied

  • Qty 2, hard plastic slide elements
  • Qty 2, anodized aluminum caps
  • Qty 2, M8 x 16 SHCS (High Head)
  • Weight – .084 kg

Applications

Assembly Info

  • M8 Thread vertical profile, top & bottom
  • Insert M8 Screw through aluminum end cap & tighten securely into profile end
  • Insert screw head into circular pocket in plastic bi-fold element
22.1148_Bi-Fold_Door_Element_MP
22.1148_Bi-Fold_Door_Element_L
22.1148_Bi-Fold_Door_Element_M

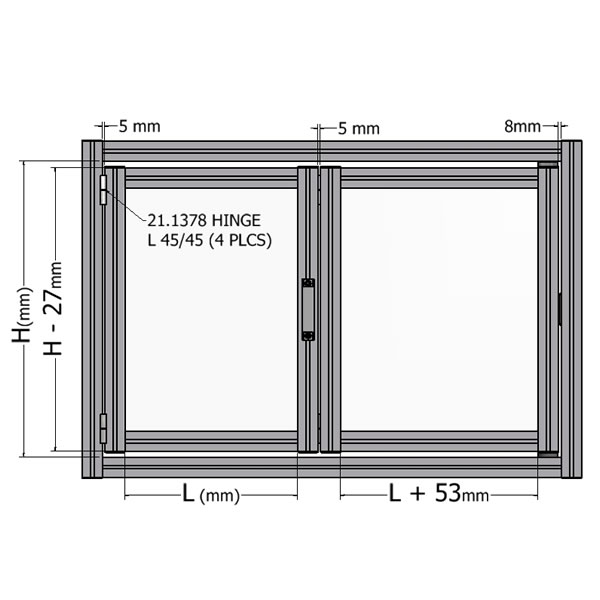

22.1148_Bi-Fold_Door_Element_R_LRG
