Cantilever Sliding Door

This is a custom product - CLICK HERE to get a quote!
PART No SP03122013-1
PART No: SP03122013-1 each
  • Gates up to 4′ x 8′ where guides above & below the door are a problem
  • Doors with more than 4′ of travel possible if frame is reinforced and the connection to the slide is strengthened. See drawing AM101421-3.
  • Displays, presentation counters & enclosures
PART No: SP03122013-1 Category:

Technical Data / Items Supplied

  • Sliding door cantilevers out without the need for top & bottom guide rails in opening
  • Door guided Using LR6 ball bearing system for smooth travel

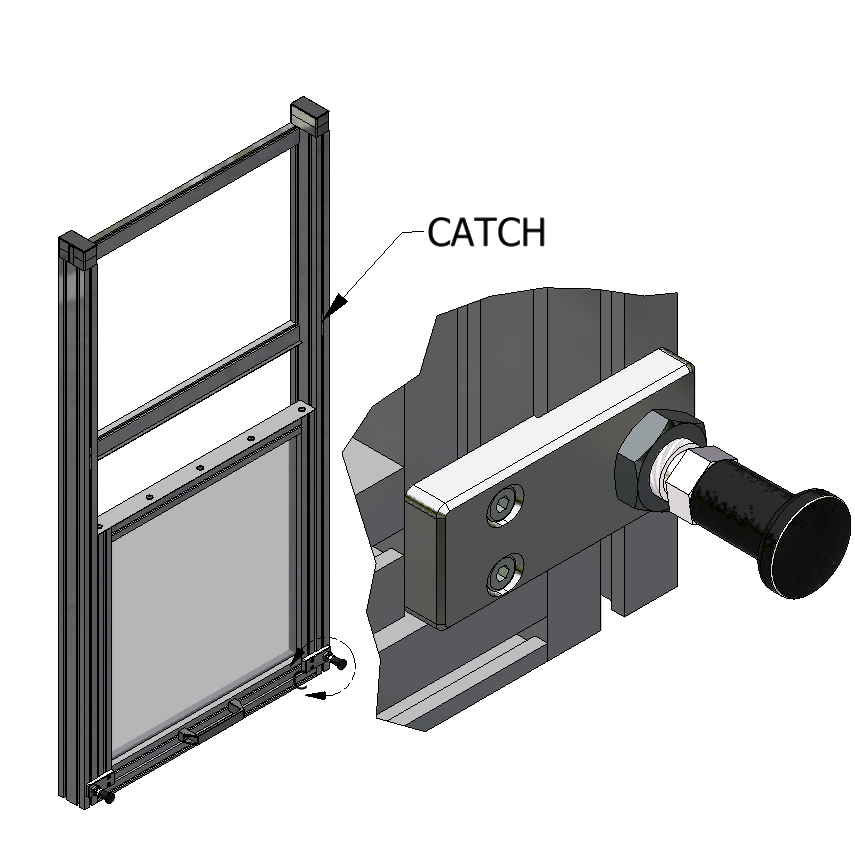

  • Door latches open & closed at guide post

Applications

Assembly Info

  • Click picture above to see more assembly detail
  • Unit typically shipps fully or partially assembled.
CLICK HERE FOR PDF
SP03122013-1_MP
SP03122013-1_L
SP03122013-1_M
SP03122013-1_R

Downloads

3D Step
Inventor
