Parallel Slide Element 1.5″

PART No 21.9200
$10.90 each
PART No: 21.9200$10.90 each
PART No: 21.9200 Categories ,

Technical Data / Items Supplied

  • Hard plastic black extremely wear resistant
  • Qty 1, M5x30 SHCS
  • Qty 1, M5 Square Nut
  • .023 kg

Applications

Assembly Info

  • Slide square nut side of assembly into t-slot of door
  • Tighten supplied M5 screw to that it bottoms out on t-slot (the plastic body will float to avoid over constraining)
  • Slide cap screw side into t-slot of guiding profile
ParallelSlideElement-300
21.9200_Parallel_Slide_Element_L
21.9200_Parallel_Slide_Element_R

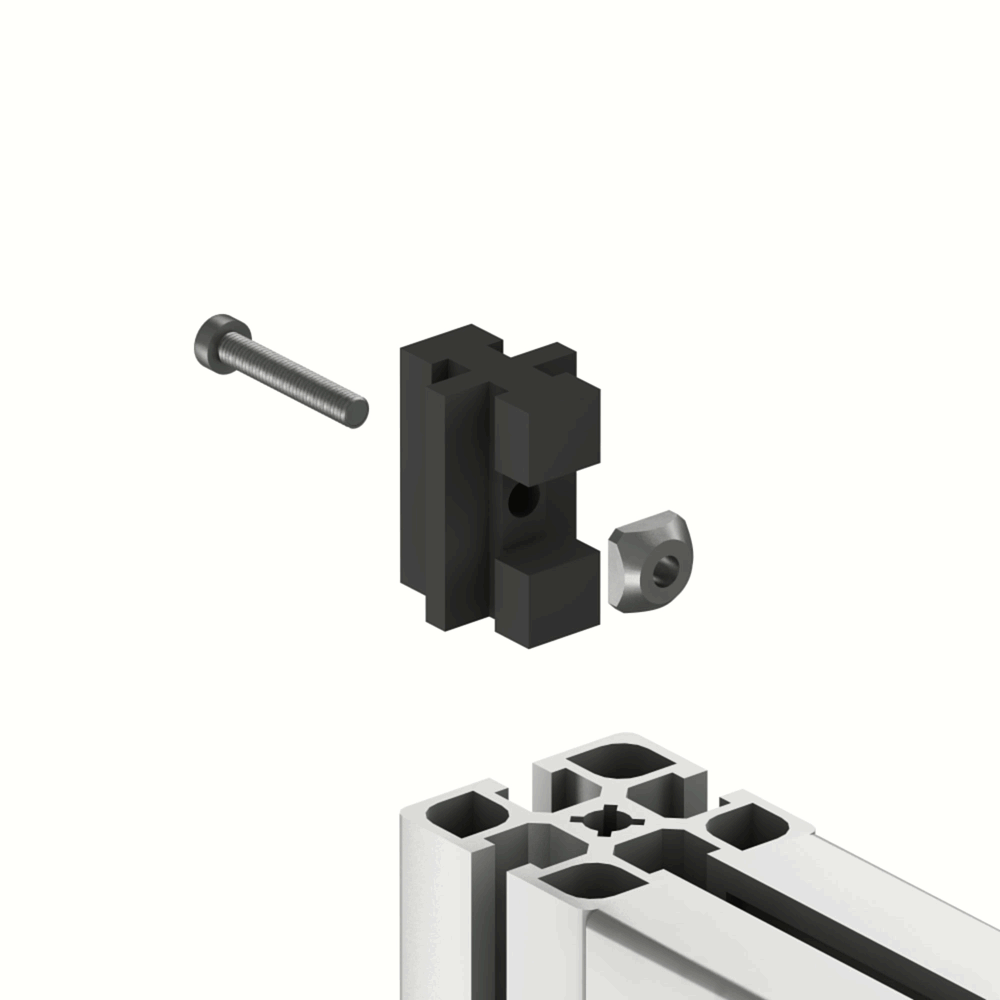

ParallelSlideElement-1000

Downloads

3D Step
Solidworks
Inventor
