Connecting Plate 90x90x45

PART No 21.2505
$24.20 each
PART No: 21.2505$24.20 each
  • Mounting plate for profile 90x90x45. Attach levelers, casters or lag to the floor thru the 9mm hole.
PART No: 21.2505 Category:

Technical Data / Items Supplied

  • Steel Plate 8mm thick, Powdercoated Gray
  • Qty. 3, M8x25 Flat Head Screws, Zinc Plated
  • Weight – .488 kg

Applications

Assembly Info

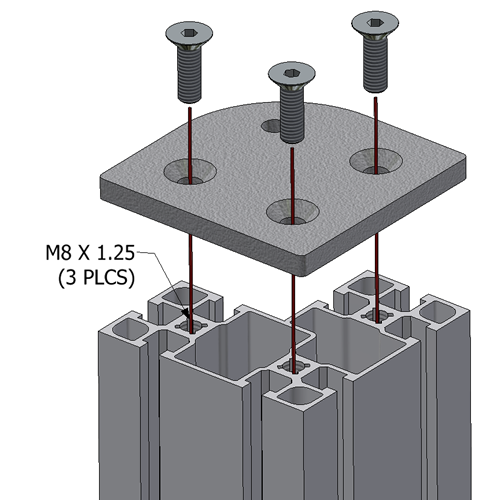

  • Thread all three endholes of the 90x90x45 using an M8x1.25 form tap.
  • Tighten 3, M8 FHCS into profile end with a 5mm hex key

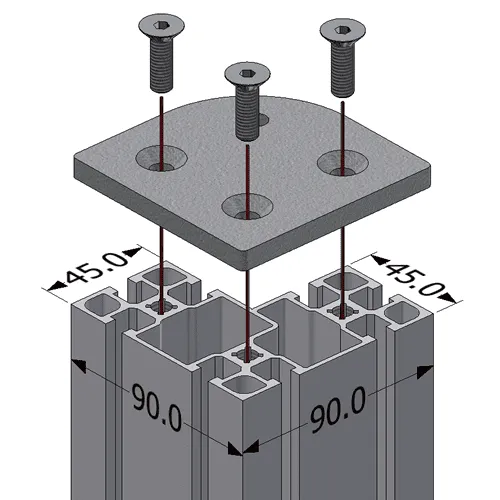

21.2505-Connecting-Plate-90x90x45_MP

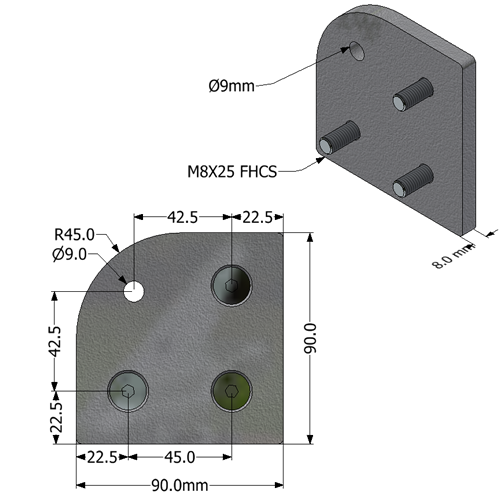

21.2505-Connecting-Plate-90x90x45_L
21.2505-Connecting-Plate-90x90x45_M
21.2505-Connecting-Plate-90x90x45_R

Downloads

3D Step

Have a Question About This Product?

We’d love to hear from you!

Get in Touch

Add-On Products

Products that pair well with this item

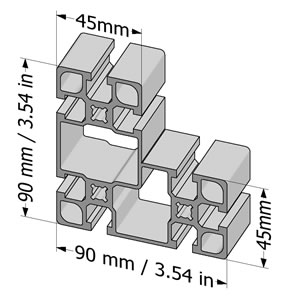

20.0984_90X90X45_MP
