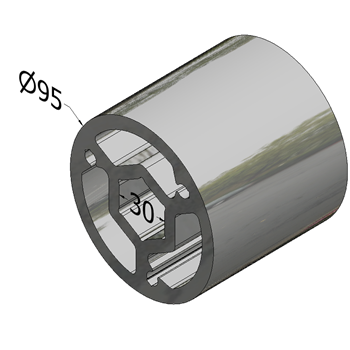

Cylinder Profile 90

This is a custom product - CLICK HERE to get a quote!
PART No 20.1059
PART No: 20.1059 each
  • Profile used to make conveyor roller 90s
  • For use with 30mm hex shaft, part 3 21.1802
  • Trap hex shaft in profile using qty 2, End Disk For Cylinder 90, Part # 29.5069
PART No: 20.1059 Category:

Technical Data / Items Supplied

  • Aluminum
  • Weight – 9.3 kg/m

Applications

Assembly Info

  • Use self tapping screws that come with end disk to thread the three end holes M8x1.25
  • Alternatively, form tap end holes using M8 forming tap, 26.1082
20.1059-CYLINDER-PROFILE-90_MP
20.1059-CYLINDER-PROFILE-90_L
20.1059-CYLINDER-PROFILE-90_M
20.1059-CYLINDER-PROFILE-90_R

Downloads

3D Step
Inventor
