End Disk For Cylinder 90

PART No 21.0983
$29.70 each
PART No: 21.0983$29.70 each
  • Attach to the end of Cylinder Profile 90
  • Use to contain Hex Bar 30 inside profile
PART No: 21.0983 Category:

Technical Data / Items Supplied

  • Cast Aluminum Disk
  • Qty 3, M8 Self Tapping Screws
  • Weight – .2 kg/m

Applications

Assembly Info

  • Use self tapping screws that come with end disk to thread the three end holes M8x1.25
  • Alternatively, form tap end holes using M8 forming tap, 26.1082
21.0983_End_Disc_For_Cylinder_Profile_90_MP

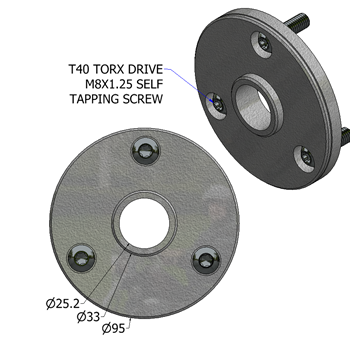

21.0983_End_Disc_For_Cylinder_Profile_90_L
20.1059-CYLINDER-PROFILE-90_M
20.1059-CYLINDER-PROFILE-90_R

Downloads

3D Step
Inventor
