Drawer 45mm Deep

This is a custom product - CLICK HERE to get a quote!
PART No SP070212-4
PART No: SP070212-4 each
  • Specify width of opening
  • 20″ drawer slides, 95 lb capacity
  • (Other lengths available)
  • Bottom panel 1/16″ anodized aluminum or specify
  • E-mail your specifications for a quote today
  • Click here for drawings with machining prints
  • Weight 16″ Wide – 5.5 kg (12 lbs)
PART No: SP070212-4 Category:

Technical Data / Items Supplied

  • Specify width of opening
  • 20″ drawer slides, 95 lb capacity
  • (Other lengths available)
  • Bottom panel 1/16″ anodized aluminum or specify
  • E-mail your specifications for a quote today
  • Click here for drawings with machining prints
  • Weight 16″ Wide – 5.5 kg (12 lbs)

Applications

Assembly Info

  • Drawer ships fully assembled
  • Mount to t-slotted profiles on left & right that are the distance “width” apart (see left picture)
  • Drawer slide 20 comes with mounting hardware for 45 series profiles
SP070212-4_45mm_DRAWER_MP
SP070212-4_45mm_DRAWER_L
SP070212-4_45mm_DRAWER_M

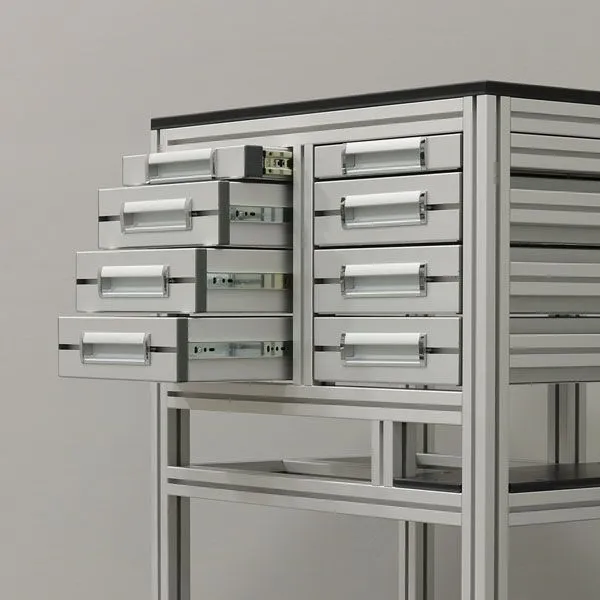

Drawers-Photo
