End Cap 90×19 Aluminum

PART No 22.1014/2
$12.98 each
PART No: 22.1014/2$12.98 each
  • Durable end cover for 90×19 profile, part # 20.0995
  •  Trade shows & applications where the cap needs to be removed often
PART No: 22.1014/2 Category:

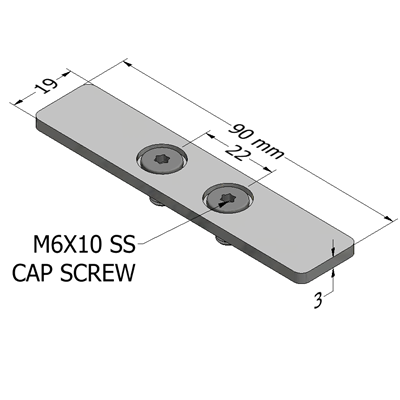

Technical Data / Items Supplied

  • Aluminum, anodized
  • Thickness 3 mm
  • Qty 2, M6x10 Extra Low Head Cap Screws 21.1666
  • Weight – .024 kg

Applications

Assembly Info

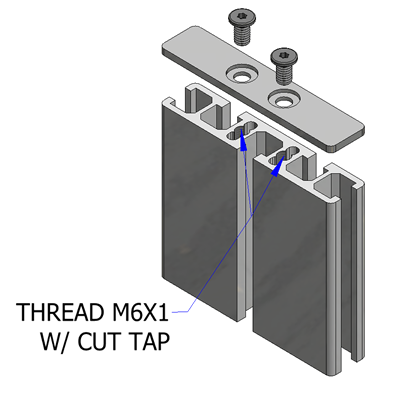

  • Tap both 90×19 Profile center holes with M6x1, cut tap
  • Screw both M6x10 into threaded holes in 90×19 profile with a T20 Torx wrench
22.1014_2-End_Cap_90x19_AL_MP
22.1014_2-End_Cap_90x19_AL_L

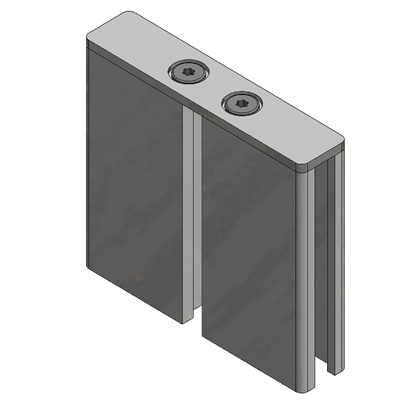

22.1014_2-End_Cap_90x19_AL_M
22.1014_2-End_Cap_90x19_AL_R

Downloads

3D Step
