Guide for Sliding Door 30

PART No 22.1184
$8.58 each
PART No: 22.1184$8.58 each

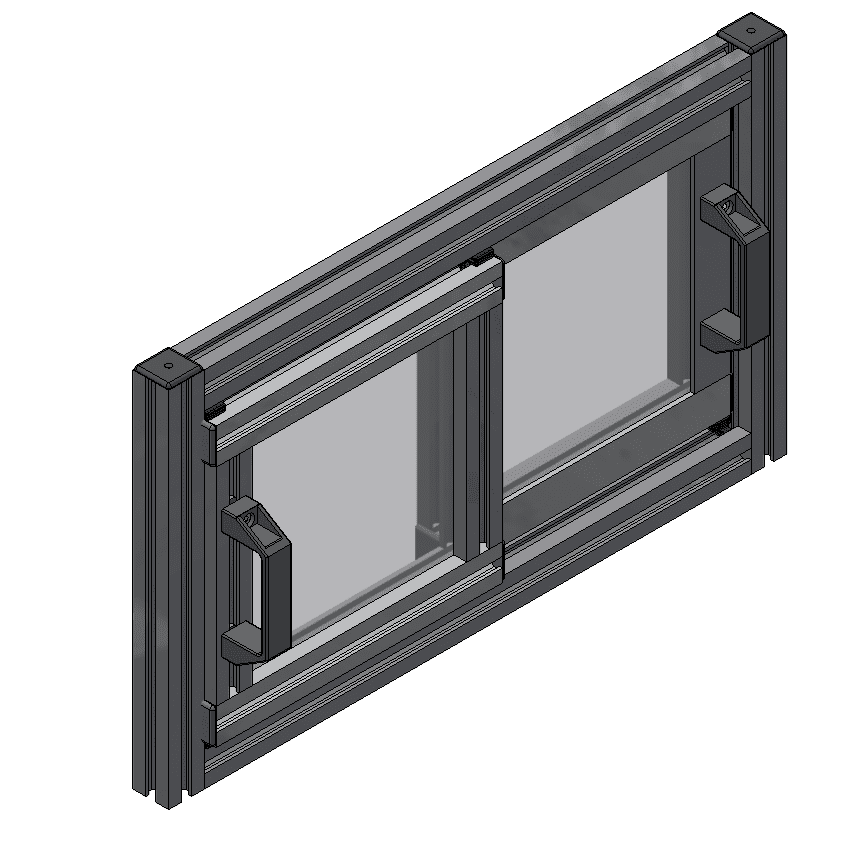

  • Horizontal or vertical sliding doors made from 30 series profiles. Frame can be made from 30 or 45 series profiles.
  • For bypassing double doors use 16×30 or 23 by 30 profiles.
  • Linear slides
  • Sliding drawers
  • Subsequent mounting of sliding doors into existing frames possible
PART No: 22.1184 Category:

Technical Data / Items Supplied

  • Qty 1 Polyamide Plastic Slide Bar
  • Qty 1 M3x6 Set Screw With Dog Point
  • For 1 door four guides are necessary
  • Weight – .01kg

Applications

Assembly Info

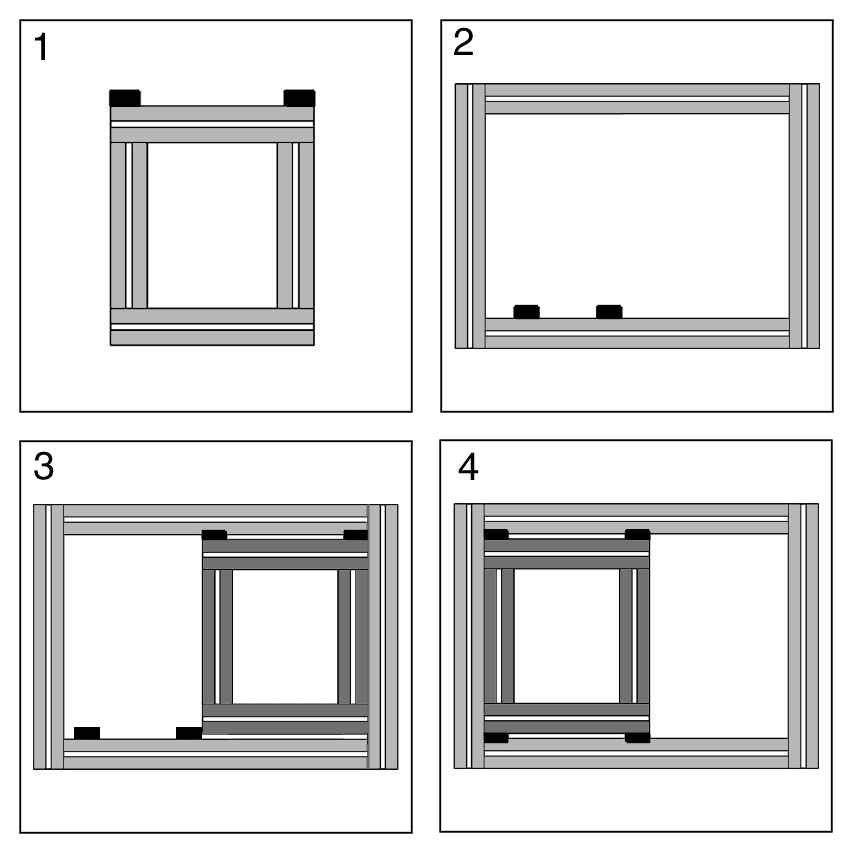

  • Insert set screw side of guide into t-slot on door
  • Self thread M3 set screw between v groove on plastic guide & the t-slot bottom of profile to fix
22.1184-GUIDE-FOR-SLIDING-DOOR-30-V_R

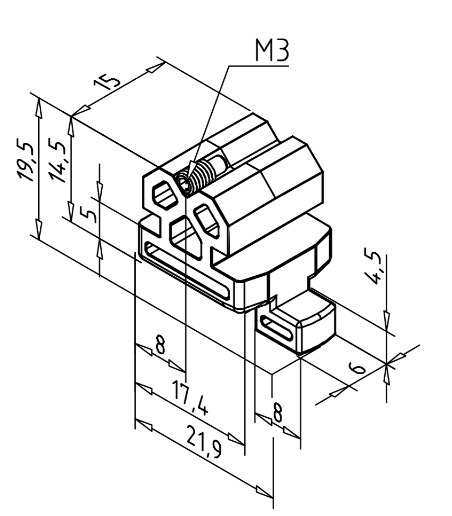

22.1184-GUIDE-FOR-SLIDING-DOOR-30-V_L
22.1184-Guide-For-Sliding-Door-30-V_M
