Lateral Guide Support 70

PART No 29.5025
$37.40 each
PART No: 29.5025$37.40 each
  • Adjustable mounting of Lateral Guide, Part # 29.5034
  • Recommended distance between supports 500mm
PART No: 29.5025 Category:

Technical Data / Items Supplied

  • PA 6 GF plastic body, gray
  • Stainless Ø12mm support shaft, 70mm long

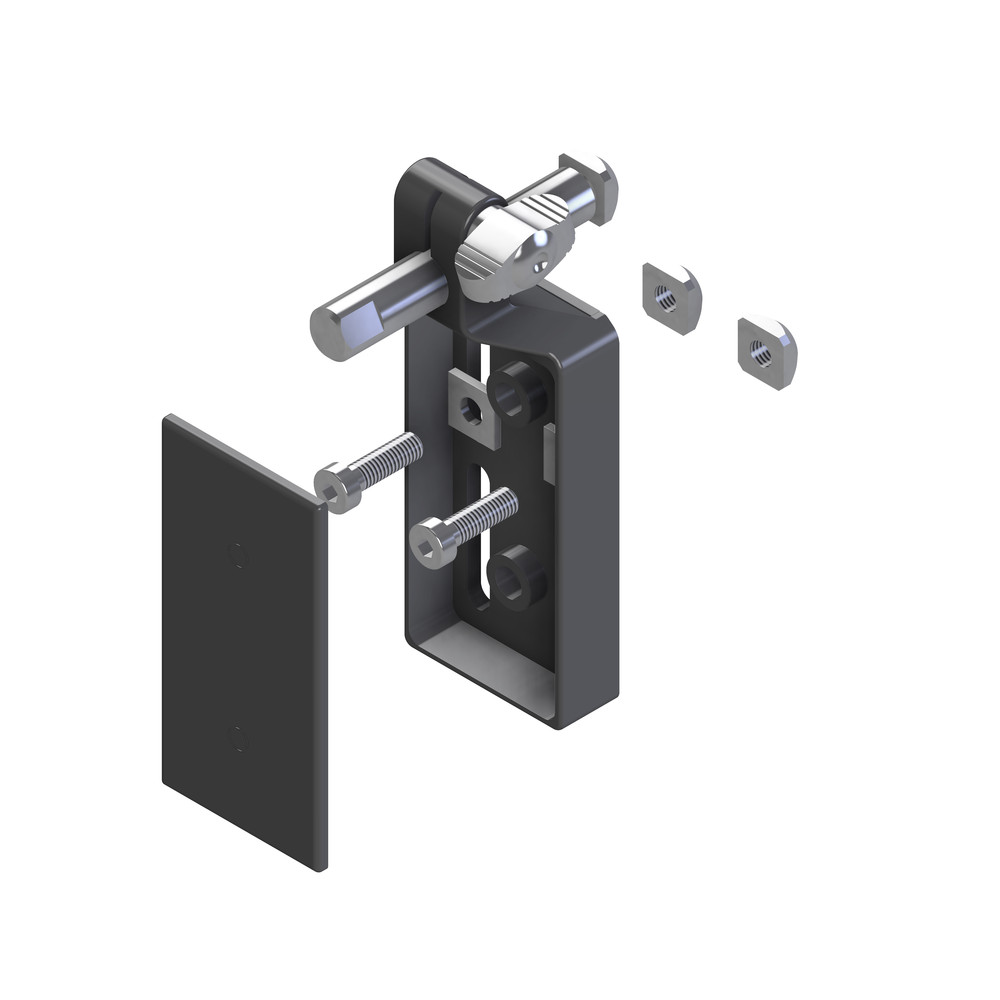

  • Qty 1, M8x20 socket head cap screw
  • Qty 1, M8 round washer, Ø20mm
  • Qty 2, M8 square nuts
  • Qty 1, Anti twist device, aluminum
  • Qty 1, 45×90 gray end cap
  • Qty 1, Shaft locking wing knob
  • Weight – .137 kg

Applications

Assembly Info

  • Fasten plastic body to conveyor profile using supplied M8 screw & nut
  • Adjust height as required
  • Slide Lateral Guide t-slot onto square nuts at end of 12mm shaft
  • turn rod to tighten nut, then tighten wing knob to fix shaft
