Lateral Guide Support 140

PART No 29.5028
$39.60 each
PART No: 29.5028$39.60 each
  • Adjustable mounting of Lateral Guide, Part # 29.5034
  • Recommended distance between supports 500mm
PART No: 29.5028 Category:

Technical Data / Items Supplied

  • PA 6 GF plastic body, gray
  • Stainless Ø12mm support shaft, 140mm long
  • Qty 1, M8x20 socket head cap screw
  • Qty 1, M8 round washer, Ø20mm
  • Qty 2, M8 square nuts
  • Qty 1, Anti twist device, aluminum
  • Qty 1, 45×90 gray end cap
  • Qty 1, Shaft locking wing knob
  • Weight – .142 kg

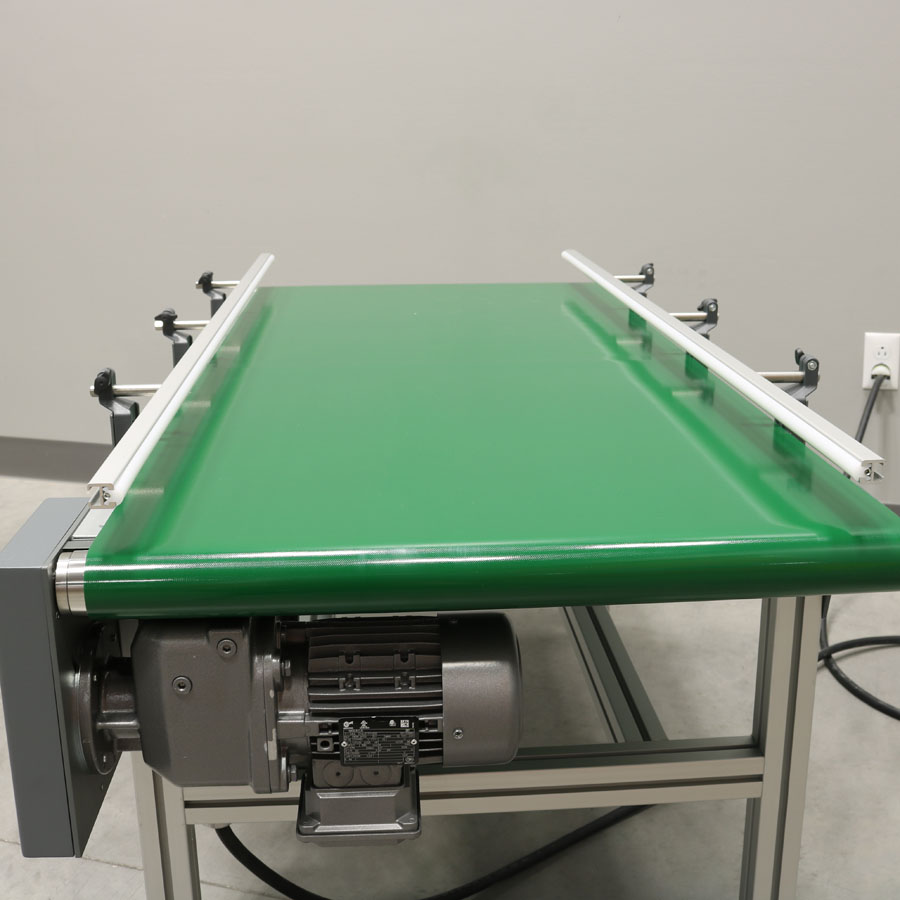

Applications

Assembly Info

  • Fasten plastic body to conveyor profile using supplied M8 screw & nut
  • Adjust height as required
  • Slide Lateral Guide t-slot onto square nuts at end of 12mm shaft
  • turn rod to tighten nut, then tighten wing knob to fix shaft
29

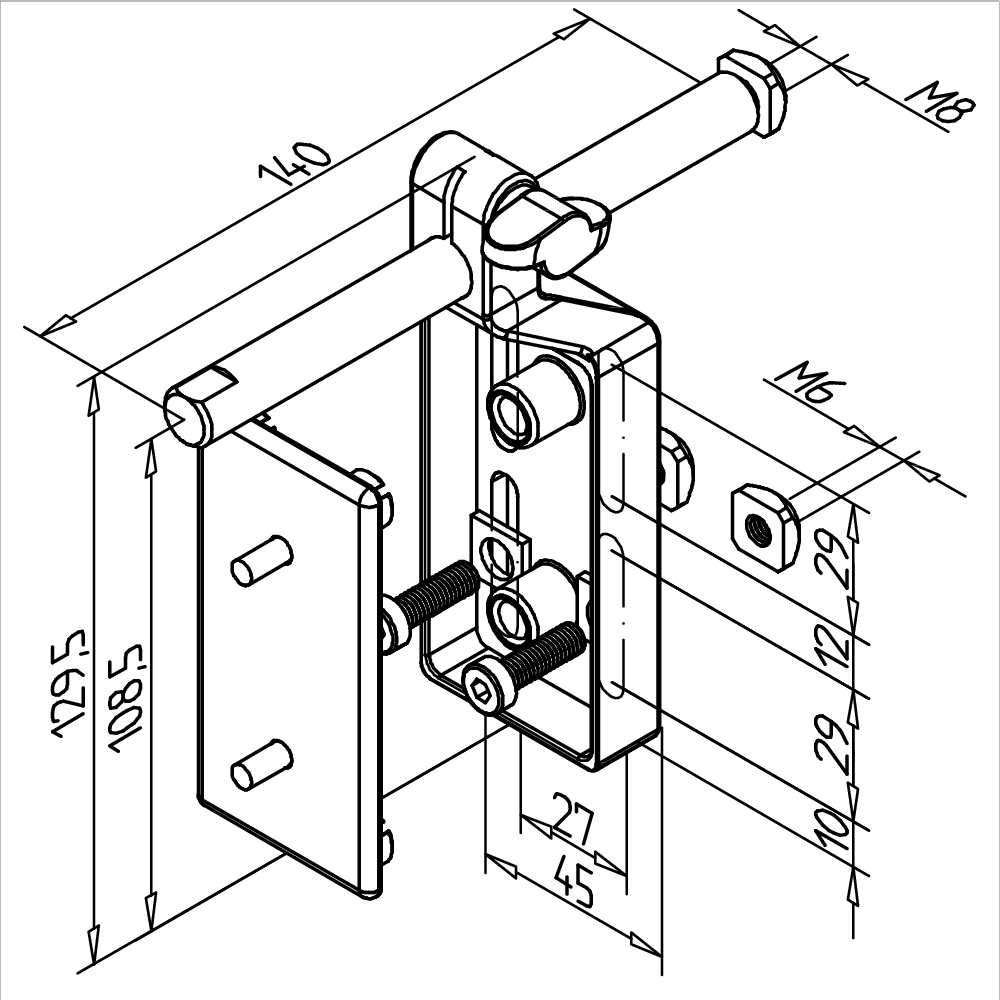

29.5028-LATERAL-GUIDE-SUPPORT-140_L
29
29.5028-LATERAL-GUIDE-SUPPORT-140_R
