M8x10 SS Pan Head Screw

PART No 21.1666
$2.37 each
PART No: 21.1666$2.37 each
  • Fastening aluminum end caps to profile ends
  • Especially use full for connecting thin material 1/8″ (3mm) to profile ends with a flush screw
  • Closest inch screw 5/16-18
  • Ø8mm = .315 inches
  • Length 10mm = .394 inches
PART No: 21.1666 Categories ,

Technical Data / Items Supplied

  • Stainless Steel
  • Diameter 8 mm
  • Length 10 mm
  • Thread pitch 1.25 mm
  • Hex drive 4 mm

Applications

Assembly Info

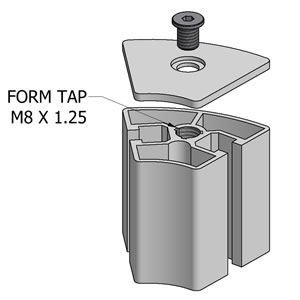

  • To fasten end caps to profile ends, thread profile M8x1.5, 25mm deep using M8 Forming Tap, Part # 26.1082
21.1666_M8x10_ELH_SS_MP
21.1666_M8x10_ELH_SS_L
22.1068_2_End_Cap_45x90AL_R
22.1017_2_END_CAP_45R45_DEG_ALU_R

Downloads

3D Step
Solidworks
Inventor
