Power-Lock Screw M8x25 Button Head

PART No 21.1189
$0.67 each
PART No: 21.1189$0.67 each
  • Fasten parts 10mm-15mm (7/16in -9/16in) to t-slots
  • Closest inch screw 5/16-18
  • Ø8mm = .315 inches
  • Length 25mm = .984 inches
PART No: 21.1189 Categories ,

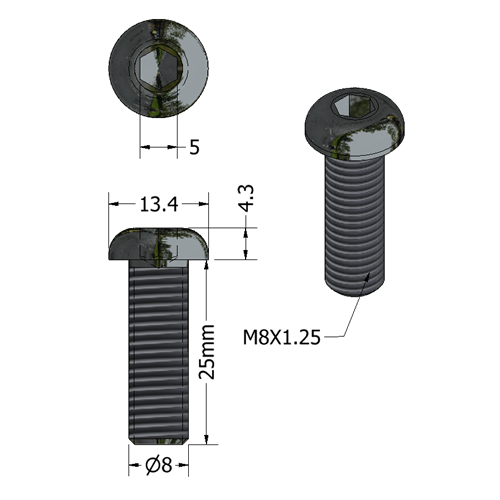

Technical Data / Items Supplied

  • Steel, zinc plated
  • Diameter 8 mm
  • Length 25 mm
  • Thread pitch 1.25 mm
  • Hex drive 5 mm
  • DIN N/A

Assembly Info

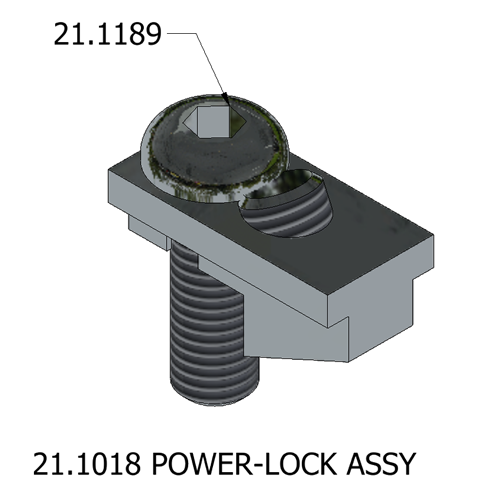

  • Special button head screw made for use with our Power-Lock Fastener, Part # 21.1018

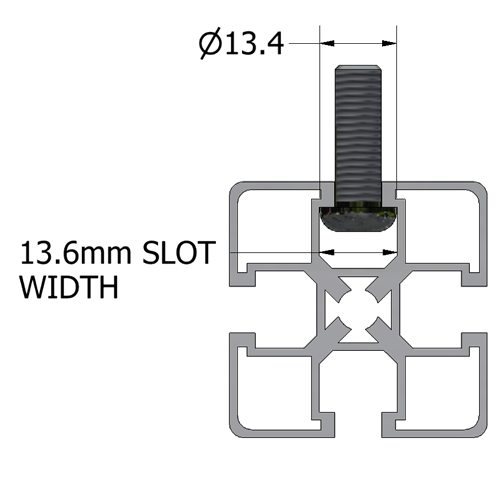

  • Head diameter is slightly smaller than a standard button head so it will fit in our t-slot
  • Head height of 4.3mm is less than the standard M8 low head of 5mm. This gives the Power-Lock more clearance in the t-slot so the screw doesn’t need to be tightened so precisely.
