M8x25 Self Tapping Button Head

PART No 21.1492
$0.79 each
PART No: 21.1492$0.79 each
  • Fasten parts 10mm-15mm (7/16in -9/16in) to t-slots
  • Closest inch screw 5/16-18
  • Ø8mm = .315 inches
  • Length 25mm = .984 inches
PART No: 21.1492 Category:

Technical Data / Items Supplied

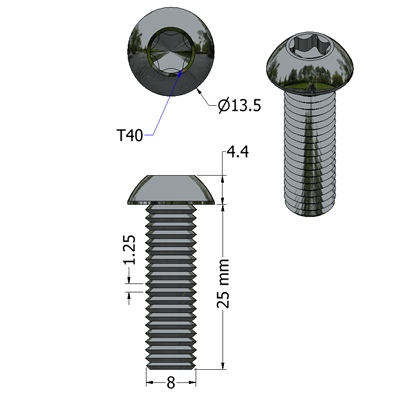

  • Steel, zinc plated, tri lobe self tapping screw
  • Diameter 8 mm
  • Length 25 mm
  • Thread pitch 1.25 mm
  • Torx Drive T-40
  • DIN

Applications

Assembly Info

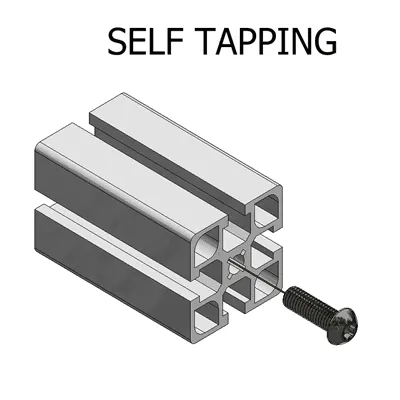

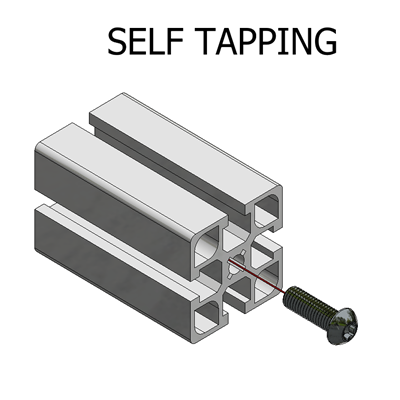

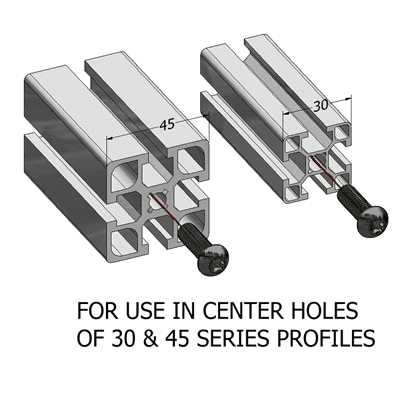

  • For use in 7.4mm center holes of 45 & 30 series profiles

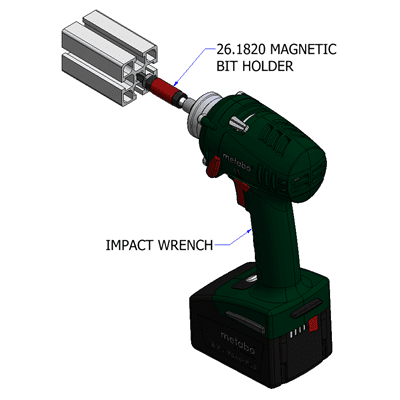

  • Drive directly in with a T40 torx driver & impact wrench
21.1492-SELF-TAPPING-SCREW-M8X25_MP
21.1492-SELF-TAPPING-SCREW-M8X25_L
21.1492-SELF-TAPPING-SCREW-M8X25_M
21.1492-SELF-TAPPING-SCREW-M8X25_R

Downloads

3D Step
