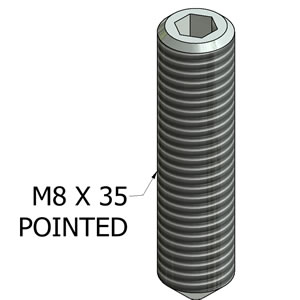

M8x35 Set Screw Cone Point

PART N^o 21.1304/1

$3.08 each

PART N^o: 21.1304/1$3.08 each

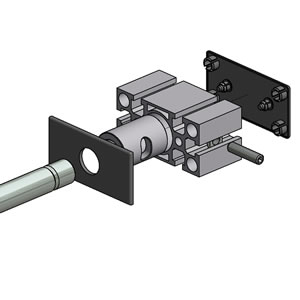

Used to fasten the 20mm shaft to the LB blocks.
Click here to see the linear system LB
Closest inch screw 5/16-18
Ø8mm = .315 inches
Length 35 mm = 1.378 inches

PART No: 21.1304/1 Categories Set Screws, Set Screws

Technical Data / Items Supplied

Steel, zinc plated
Din 914
Diameter 8 mm
Length 35 mm
Thread pitch 1.25 mm
Hex drive 4 mm
End type Cone Point

Applications

Assembly Info

21.1304_1_M8x35_Set_Screw_Pointed_L

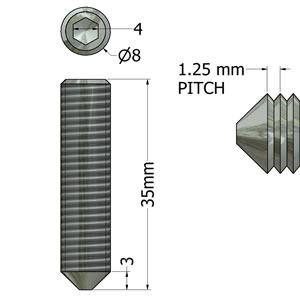

21.1304_1_M8x35_Set_Screw_Pointed_M

21.1304_1_M8x35_Set_Screw_Pointed_R

Downloads

Have a Question About This Product?

We’d love to hear from you!

Add-On Products

Products that pair well with this item

M8 Square Nut W/Pos. Fixing

Part N^o 21.1351/2

M8x16 Set Screw Flat Point Zinc Plated

Part N^o 21.1301

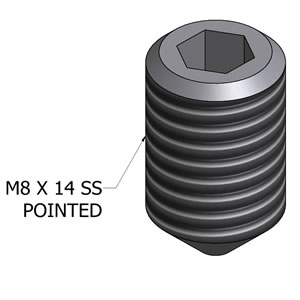

M8x14 Set Screw Cone Point Stainless Steel

Part N^o 21.1303/1

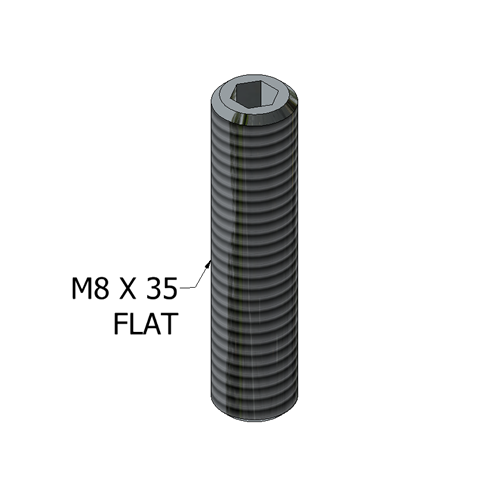

M8x35 Set Screw Flat Tip

Part N^o 21.1304

Related Products

Products with similar features & uses

M6x12 Set Screw Flat Point Zinc Plated

Part N^o 21.1380

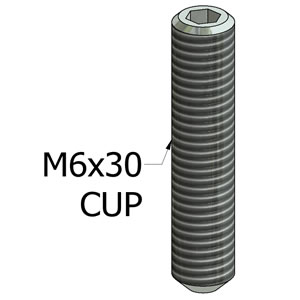

M6x30 Set Screw Cup Point Zinc Plated

Part N^o 21.1364

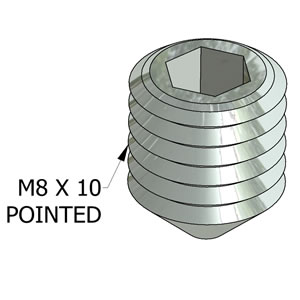

M8x10 Set Screw Cone Point Zinc Plated

Part N^o 21.1129/1

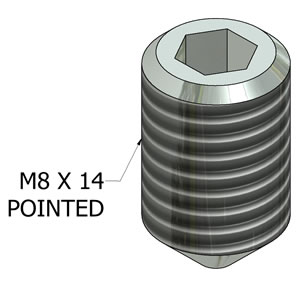

M8x14 Set Screw Cone Point Zinc Plated
