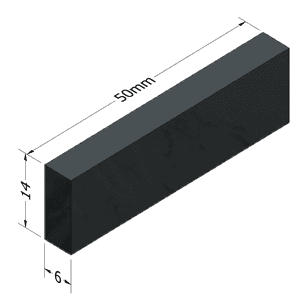

Magnet 6x14x50

PART No 21.0032
$25.30 each
PART No: 21.0032$25.30 each
  • Adhesive magnet for tools
  • Use under conveyor belts as tracking, for magnetizable conveying products or at higher conveying speeds

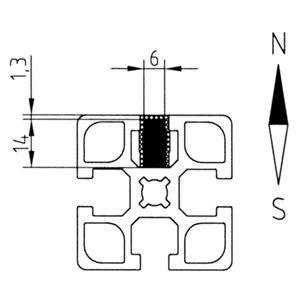

  • Fitting for all profiles of profile series 45
PART No: 21.0032 Category:

Technical Data / Items Supplied

  • NeFeB N35, nickel-plated
  • Attachment hardware sold separately
  • Power density, BHmx 263kJ/m³
  • Remanence, Br 1170 mT
  • coercive field strength Hcj 955 kA/m
  • max. service temperature +80 °C
  • Weight – .07kg

Applications

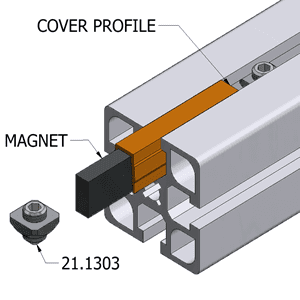

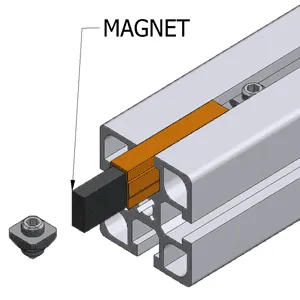

Assembly Info

  • Snap or slip the cover profile into profile groove
  • Insert magnet into t-slot
  • Fasten with qty 2, 21.1303 M8x14 Set Screws & 21.1351 M8 Square Nut
21.0032_Magnet_6x14x50_MP
21.0032_Magnet_6x14x50_L
21.0032_Magnet_6x14x50_M
21.0032_Magnet_6x14x50_R

Downloads

3D Step
Inventor
