Magnet 6x9x50mm

PART N^o 21.0040

$12.10 each

PART N^o: 21.0040$12.10 each

Adhesive magnet for tools
Use under conveyor belts as tracking, for magnetizable conveying products or at higher conveying speeds
Fitting for all profiles of profile series 30

PART No: 21.0040 Category: 30 Series Parts

Technical Data / Items Supplied

NeFeB N45, nickel-plated
Attachment hardware sold separately
Power density, BHmx 342kJ/m³
Remanence, Br 1320 mT
coercive field strength Hcj 955 kA/m
max. service temperature +80 °C
Weight – .023kg

Applications

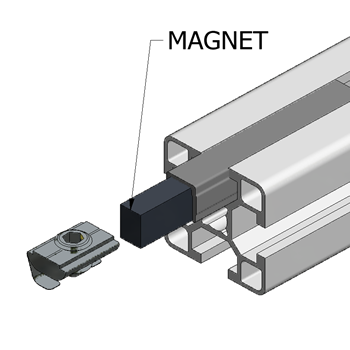

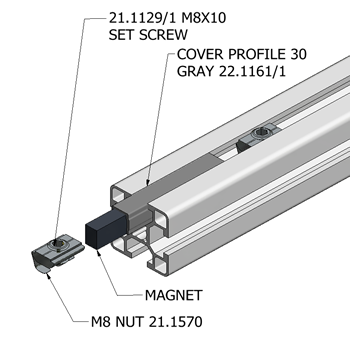

Assembly Info

Snap or slip the 50mm piece of cover profile 30 into profile groove
Insert magnet into t-slot
Fasten with qty 2, 21.1129/1 M8x10 Set Screws & 21.1570 M8 Nut

21.0040_Magnet_6x9x50mm_MP

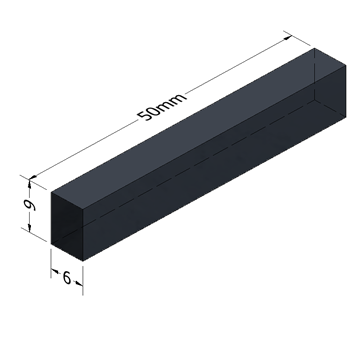

21.0040_Magnet_6x9x50mm_L

21.0040_Magnet_6x9x50mm_M

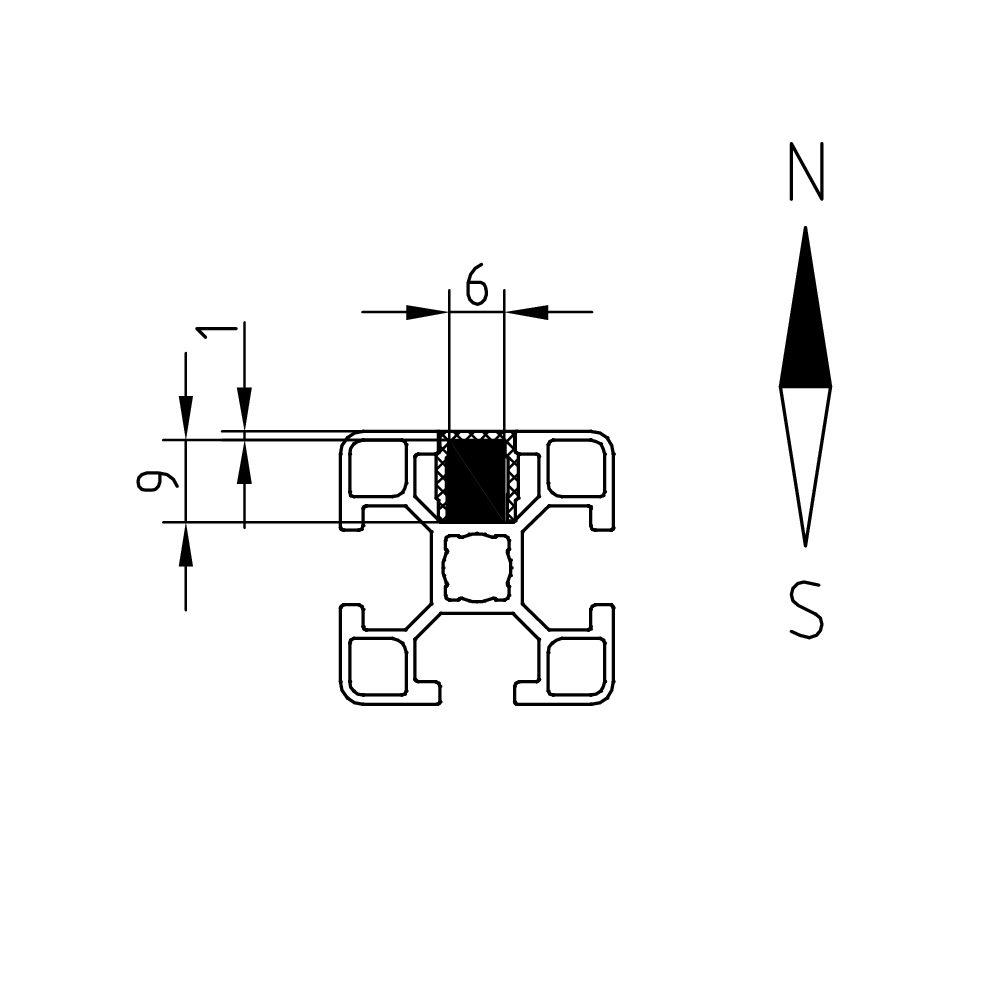

21.0040-MAGNET-6X9X50mm
