Motor Attachment Kit 20

PART No 29.5031
$500.50 each
PART No: 29.5031$500.50 each
  • Mounting motor underneath belt conveyors 45
  • Designed for use with Belt Driving Cylinder, Part # 29.5022
  • Belt Tensioning Cylinder 21.0994 typically is used at other end of conveyor
PART No: 29.5031 Category:

Technical Data / Items Supplied

  • Motor plate and cover steel, powder coated gray
  • Self aligning Ø17mm bearing
  • 12 tooth sprocket for conveyor pulley output shaft
  • 15 tooth sprocket for Ø20mm motor shaft
  • Spacer for motor flange
  • 1 Roller Pinch Guard 45
  • Slotted hole pattern designed for a motor with Ø100mm bolt circle
  • Available with sprocket for 16mm motor shaft on request.
  • 1 motor/gearbox rev = .643 ft of belt travel
  • 50 motor/gearbox rpm = 32.5 feet per minute
  • Weight – 3.060 kg

Applications

Assembly Info

  • Fasten main plate to conveyor frame with supplied M8 hardware
  • Mount bearing using supplied square retainer & M6 hardware
  • Slide in belt driving cylinder and secure at other end using conveyor bearing 45, Part # 21.0993
  • Attach electric motor, then attach sprockets & tension chain
  • Install cover plate with supplied M6 hardware

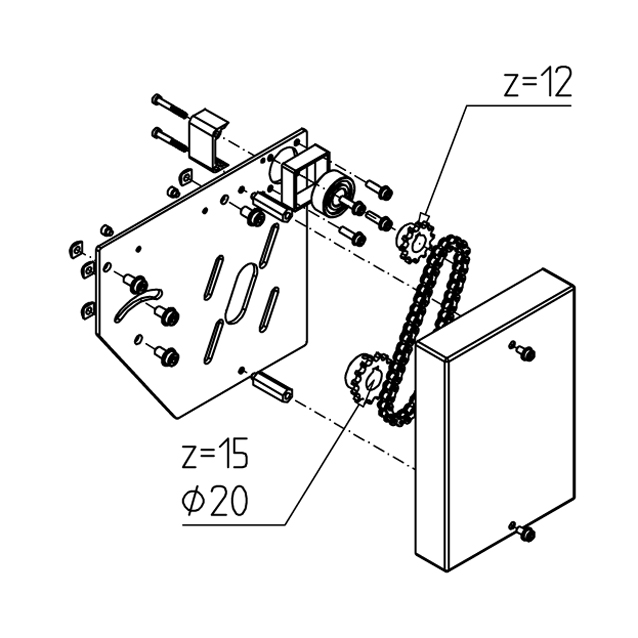

29.5031_Motor_Attachment_Kit_Dia_20_R
