Conveyor Bearing 45 W/Bore

PART No 21.0993/1
$86.90 each
PART No: 21.0993/1$86.90 each
  • Conveyor bearing for belt rollers with a Ø 17 mm Axles
  • For use with Belt Driving Cylinder 45 for motor kit, Part # 29.5022
  • For use with Belt Driving Cylinder 45 for plug on motor, Part # 29.5023
  • For use with Belt Driving Cylinder 45, Part # 21.0995
PART No: 21.0993/1 Category:

Technical Data / Items Supplied

  • Cast aluminum, powder coated gray
  • Qty 1 Self aligning Ø 17 mm ball bearing sealed on both sides
  • Qty 2, M8x16 socket head cap screws
  • Qty 2 M8 square nuts
  • Qty 1 M6x25 hex head screw
  • Qty 2 gray plastic screw cover caps
  • M8 X 1.25 thru, threaded hole for use with torque arm.
  • Available with stainless bearing and screws, Part # 21.0993/6
  • Weight – .268 kg

Applications

Assembly Info

  • No processing required. Simply bolt to t-slots using supplied M8x16 screws & M8 nuts
  • Use Conveyor Bearing 45 , Part # 21.0993, when drive shaft doesn’t need to extend thru bearing
  • Use tab on Swivel Plate, Part # 29.5001, as backstop for M6 jacking screw
  • Alternatively use Multi-Block GD, Part # 21.1355, as backstop for jacking screw
  • Recommended locking torque for M8x16 screws is 25 Nm
21.0993_1_Conveyor_Bearing_45_With_Bore_MP

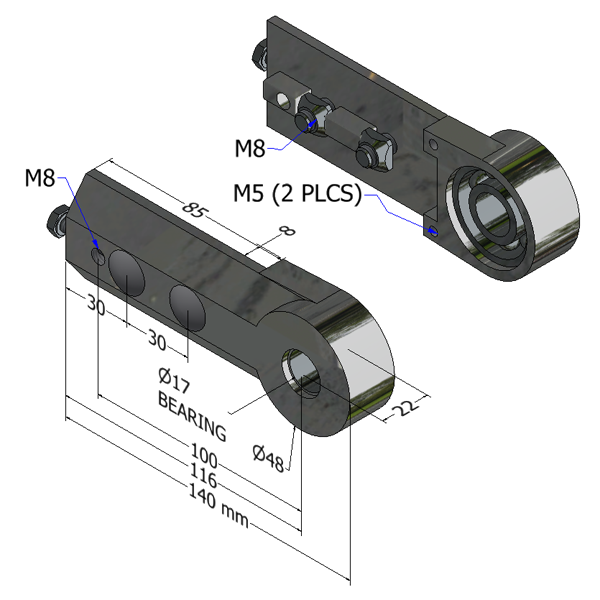

21.0993_1_Conveyor_Bearing_45_With_Bore_L
21.0993_1_Conveyor_Bearing_45_With_Bore_M

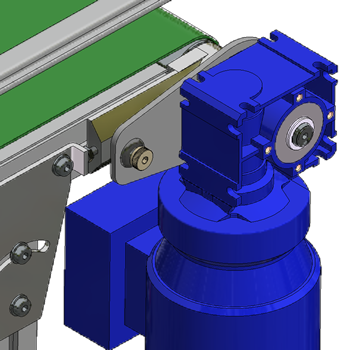

21.0993_1_Conveyor_Bearing_45_With_Bore_R

Downloads

3D Step
Inventor
