Motor Kit 90

PART No 29.5060
$1,369.50 each
PART No: 29.5060$1,369.50 each

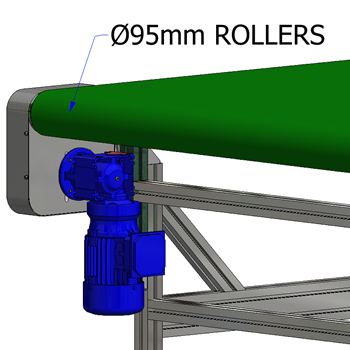

  • Mount motor under MiniTec’s Conveyor series 90
  • For use with hollow bore motors
PART No: 29.5060 Category:

Technical Data / Items Supplied

  • Complete drive train to mount motor under 90 series conveyor

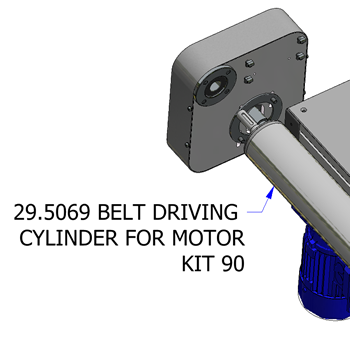

  • Includes 20mm self aligning bearing to support 29.5069 drive roller

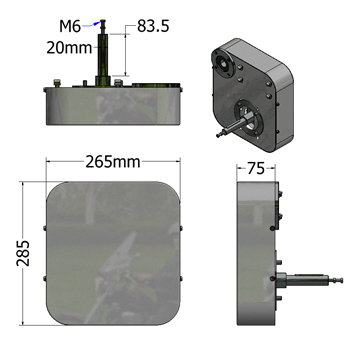

  • 20mm output shaft with 6mm key to mount motor

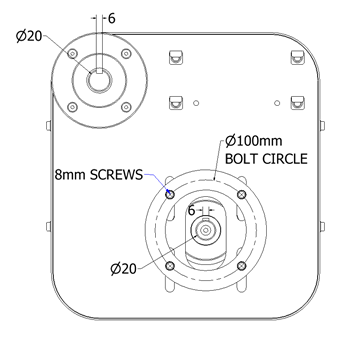

  • Flange to go around motor pilot with 100mm bolt circle.  Flange diameter is 120mm
  • Comes with 6x6x36mm key used on drive pulley as well as 6mm key for use with motor
  • Comes with 2x M6 screws to secure drive shaft to motor but does not include a washer to go over 20mm motor bore
  • Weight: 5.973 kg

Assembly Info

  • Slide over 20mm conveyor roller shaft and bolt to 90mm profile using supplied M8 hardware
  • Can be assembled to mount to left or right sides of conveyor
