Mounting Angle 45 G

PART No 21.2503/1
$22.39 each
PART No: 21.2503/1$22.39 each

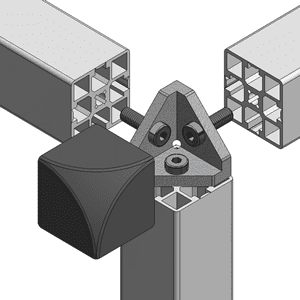

  • Three way corner for 45 series profiles
  • Decorative look for showcases enclosures and displays
PART No: 21.2503/1 Category:

Technical Data / Items Supplied

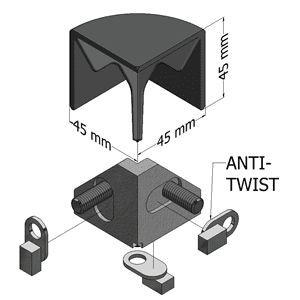

  • Cast aluminum triangular bracket
  • 3 M8x25 socket head cap screws
  • 3 Anti-Twist Inserts Aluminum

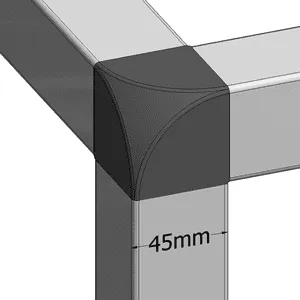

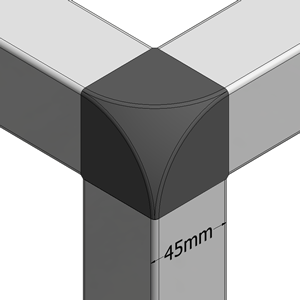

  • 1 angled plastic end cap, gray
  • Weight – .121 kg

Applications

Assembly Info

  • Tap center hole of profile with M8 Forming Tap 26.1082
  • Secure bracket to all three profiles
  • Snap on plastic cap by tapping with a small plastic mallet
  • Recommended locking torque 20 Nm
