Multiblock 30 GD

PART No 21.2220
$7.15 each
PART No: 21.2220$7.15 each

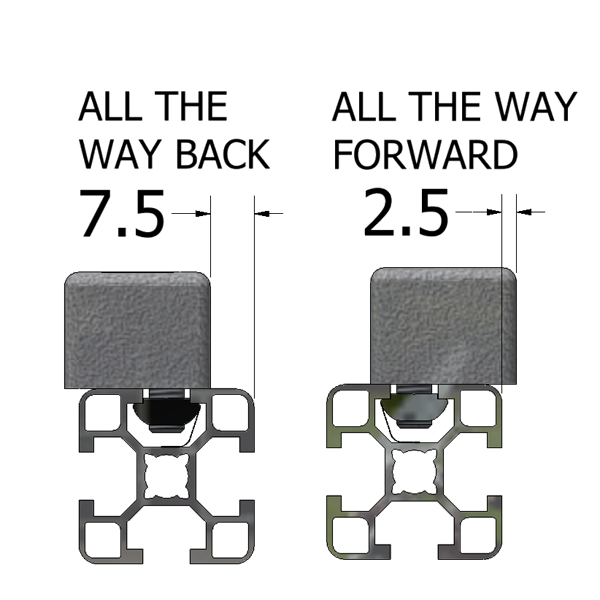

  • Slot allows 10mm adjustment to mount panels up to 7.5mm thick flush to the front of a 30×30 profile
PART No: 21.2220 Category:

Technical Data / Items Supplied

  • Aluminum Block, Powder Coated Gray
  • Qty 1, M6x22 socket head cap screw for attaching to t-slot
  • Qty 1, M6 Square Nut 30With Position Fixing
  • M6 screw for attaching panel sold separately
  • Weight – .035kg

Applications

Assembly Info

  • Attach Multiblock to t-slot with supplied M6 hardware
  • Adjust block depth for panel thickness
  • Fasten panel to block with Pan Head Screw 16 (sold separately)

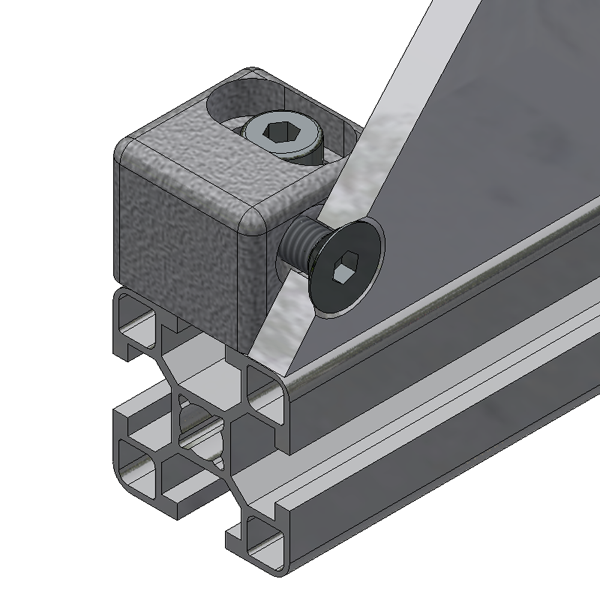

21.2220-Multiblock-30-GD_MP
21.2220-Multiblock-30-GD_L

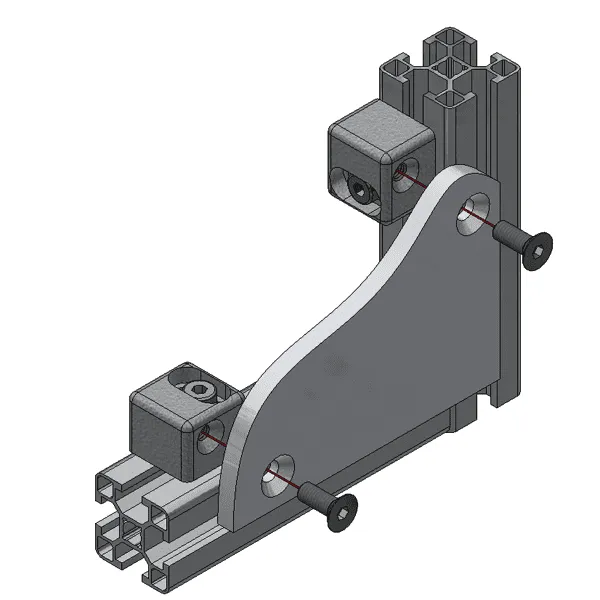

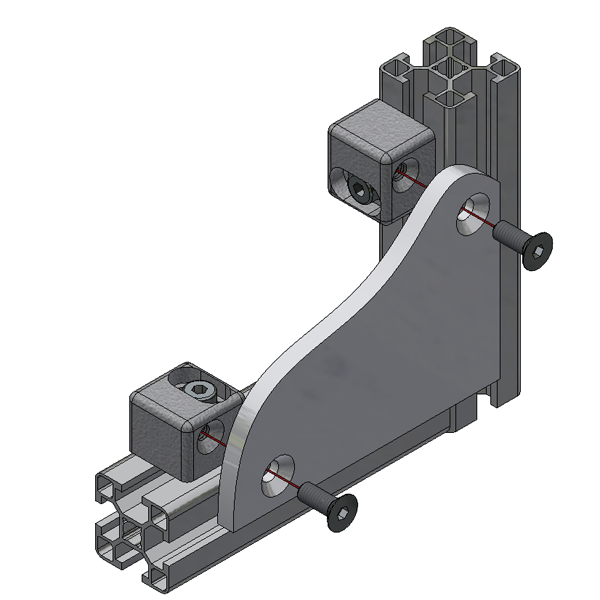

21.2220-Multiblock-30-GD_M
21.2220-Multiblock-30-GD_R

Downloads

3D Step
Inventor

Have a Question About This Product?

We’d love to hear from you!

Get in Touch

Add-On Products

Products that pair well with this item

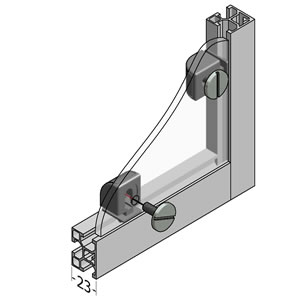

22.1255_Screw_Block_23_MP

Screw Block 23

Part No 22.1255
21.9559_POLY_CLEAR.125_MP

3mm (1/8″) Polycarbonate – Clear

Part No 21.9559

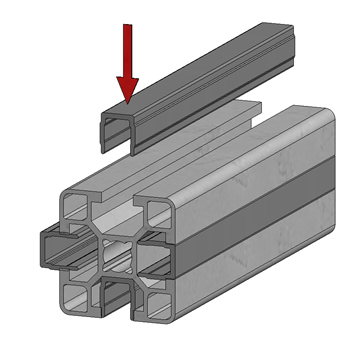

22.1161_1_Cover_Profile_30_Gray_M
