Power-Lock Fastener N

PART No 21.0918
$15.07 each
PART No: 21.0918$15.07 each
  • CLICK HERE FOR ASSEMBLY ANIMATION
  • For all MiniTec profiles
  • Works in all t-slots
  • Use when sliding a fastener in from the end isn’t practical
  • For profiles bigger than 45×45 multiple fasteners can be used
PART No: 21.0918 Category:

Technical Data / Items Supplied

  • Power-Lock N body, zinc plated steel
  • M8 x 10 set screw
  • M8 x 8 set screw
  • M8 square nut 21.1351
  • Weight – .034 kg

Applications

Assembly Info

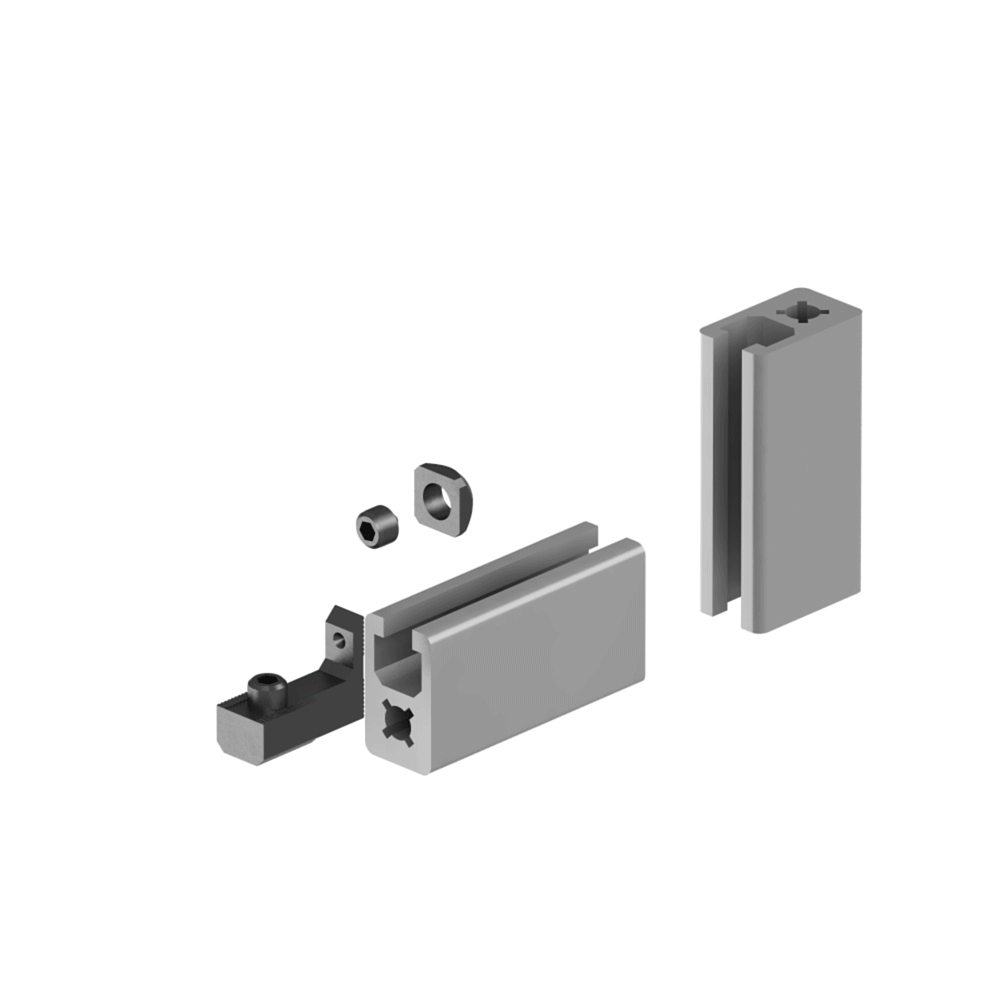

  • Click here for assembly diagram
  • Slide Power-Lock N into t-slot
  • Place profiles in desired position
  • Slide Power-Lock N into opposing slot
  • Slide M8 square nut over L-shaped end
  • Tighten M8x8 set screw
  • Tighten captive M8x10 set screw
  • Recommended torque for both screws 10 Nm
CLICK HERE FOR PDF
21.0918-Power-Lock-Fastener-N-Photo
21.0918_Power-Lock_Fastener_N_L
PowerLockN_250x250
PowerLockN 1000x1000

Downloads

3D Step
Solidworks
Inventor
