Screw Block 30

PART N^o 22.1250

$4.95 each

PART N^o: 22.1250$4.95 each

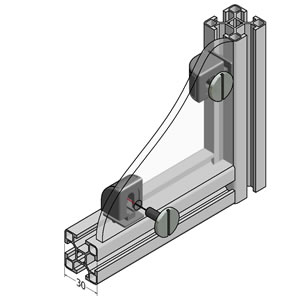

For mounting panels to profiles 30 series profiles

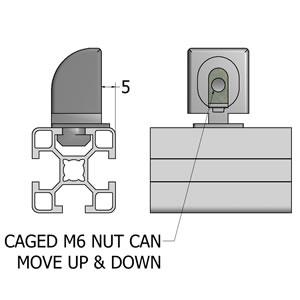

Caged nut allows adjustment for hole alignment

PART No: 22.1250 Category: 30 Series Parts

Technical Data / Items Supplied

ABS Plastic, Gray
Qty 1 M6x1 caged steel square nut (installed)
M6 screw for fastening panel sold separately
Weight – .011 kg

Applications

Assembly Info

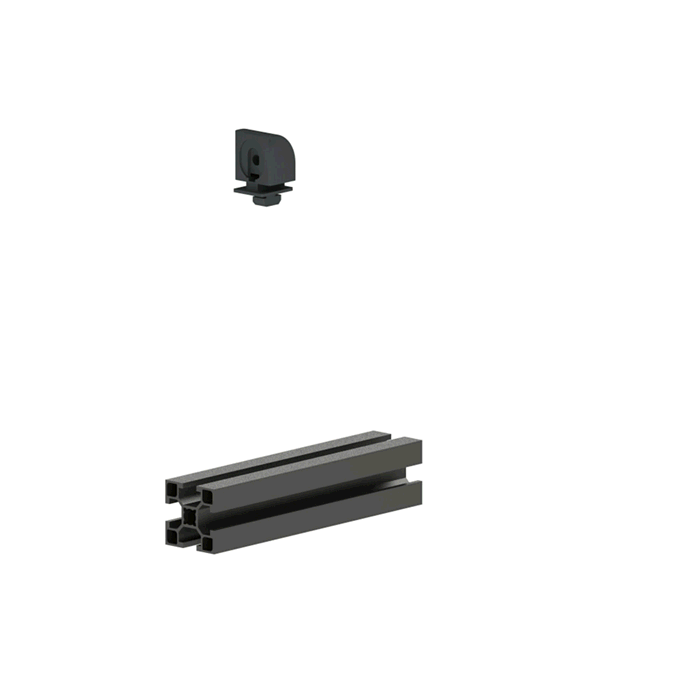

Insert tab into T-slot and rotate 90°
Fasten panel with pan head screws 21.1246 or other M6x1 screw

22.1250_Screw_Block_30_MP

22.1250_Screw_Block_30_L

22.1250_Screw_Block_30_M

22.1250_Screw_Block_30_700
