Shaft 12

PART N^o 17.1741

each

Series

Purchase Options

Clear

Cost per inch = $0.88

Enter Length (inches):

(6.00 meters)

Min = 1.00 in | Max = 236.22 in

A cut fee of $8.47 will be added to each cut piece that's less than the full length.

*This cut length is too costly to ship via normal UPS shipping. Please contact us for a quote.

PART No: 17.1741 Category: Rails

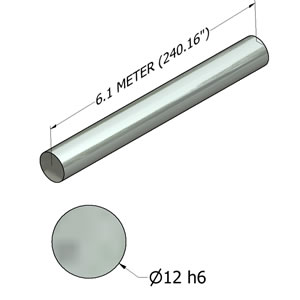

Steel(Cf 53) Ø12mm bearing shaft hardened 60 + 5 HRC, precision ground h6(+0mm -.011mm)
Order cut to size +/- 1/16″
Available in stainless (440B/1.4112)Part # 17.1741/1
For cut charge use Part # 25.9001
Max Length – 6.1m
Weight – .888 kg/m

Cut to size with abrasive wheel. Carbide tipped circular saws & band saws can’t cut hardened steel

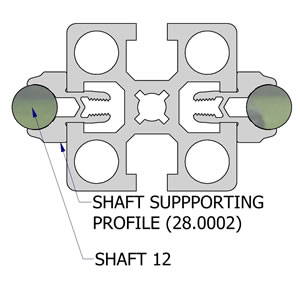

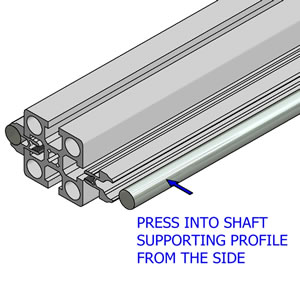

Attach steel rail to any t-slot using Shaft Supporting Profile Part # 28.0002
For rails greater than 6m, joints of structural profile, shaft supporting profile & shaft 12 can be offset as shown above
