Shaft Supporting Profile

PART N^o 28.0002

each

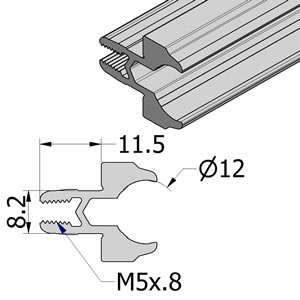

Attachment of Shaft 12 to any t-slot

Purchase Options

Clear

Cost per inch = $0.41

Enter Length (inches):

(6.00 meters)

Min = 1.00 in | Max = 236.22 in

A cut fee of $3.03 will be added to each cut piece that's less than the full length.

PART No: 28.0002 Category: Rails

Technical Data / Items Supplied

Aluminum, anodized
Can be ordered cut to size +/- .010″
For cut charge use Part # 25.1093
Max. Length – 6 m
Weight – .365 kg/m

Applications

Assembly Info

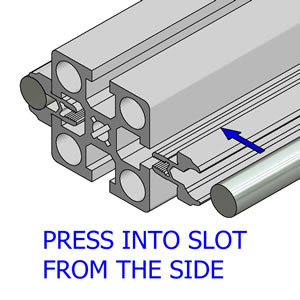

No processing required. Simply press/tap into profile groove by hand & with plastic mallet

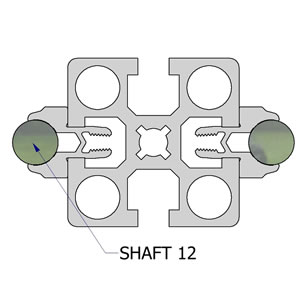

Press/tap shaft 12 into shaft supporting profile by hand & with plastic mallet
Ends can be covered & profile can be secured against movement with Shaft Retention Device
Alternatively profile can be further held in t-slots with M5x10 set screws

28.0002_Shaft_Supporting_Profile_MP

28.0002_Shaft_Supporting_Profile_L

28.0002_Shaft_Supporting_Profile_M
