Slide LR 16 – 90

PART No 28.0811
$935.00 each
PART No: 28.0811$935.00 each
  • Linear guide for use with Rail LR 16 90 & Rail LR16 90×180 H
  • Linear guide for a broad range of custom constructions, both single & multi-axis
  • Slide & rail are made from standard MiniTec Profiles making the system easy to customize. Also there is no need for adaptor plates since linear system & frame are made from the same product
PART No: 28.0811 Category:

Technical Data / Items Supplied

  • Top Plate Aluminum
  • Qty 4 Ball Bearing LR 16
  • Qty. 2 concentric & 2 eccentric bushings
  • Qty 4 Bearing covers with integrated spring loaded felt wipers
  • See load ratings for LR series slides
  • Weight – 4.078 kg

Applications

Assembly Info

  • Slide ships fully assembled
  • Slide on rail end and adjust eccentric bushings to adjust bearing clearance
  • For use with linear system LR timing belt 32 AT 10 & pulleys
28.0811_Slide_LR16-90_R
28.0811_Slide_LR16-90_L
28.0811_Slide_LR16-90_M
28.0811_Slide_LR16-90_R

Downloads

3D Step
Solidworks
Inventor

Have a Question About This Product?

We’d love to hear from you!

Get in Touch

Add-On Products

Products that pair well with this item

28.0093_Timing_Belt_32_AT_10_MP

Timing Belt 32 AT10

Part No 28.0093
50.1726_Ball_Bearing_LR_16_M

Ball Bearing LR 16ZZ

Part No 50.1726
28.0815_End_Cap_LR_16_M

End Cap LR 16

Part No 28.0815

Related Products

Products with similar features & uses

28.0815_End_Cap_LR_16_M

End Cap LR 16

Part No 28.0815
17.1743_Shaft_16_M

Shaft 16

Part No 17.1743
28.0093_Timing_Belt_32_AT_10_MP

Timing Belt 32 AT10

Part No 28.0093

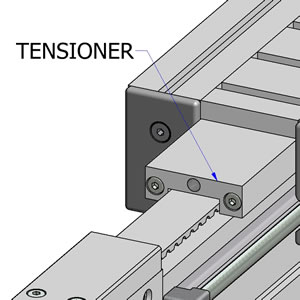

28.0090_Timing_Belt_Tensioner_MP
