Timing Belt Tensioner

PART No 28.0090
$114.40 each
PART No: 28.0090$114.40 each
  • Tensioning of Timing Belt 32 AT 10 to LR12 series slides

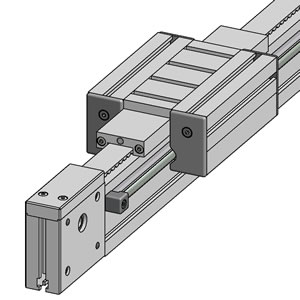

  • Use one tensioner on each side of linear slide
PART No: 28.0090 Category:

Technical Data / Items Supplied

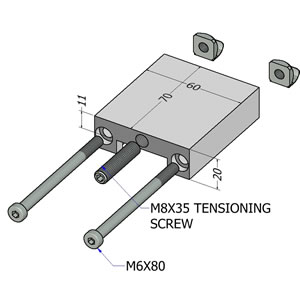

  • Housing aluminum, anodized
  • Belt tensioning plate with 3 teeth, zinc plated steel
  • Qty 2 M6x80 socket head caps screws
  • Qty 2 M6 square nuts with position fixing
  • Qty 1 M8x35 set screw for belt tensioning
  • Weight – .236 kg

Applications

Assembly Info

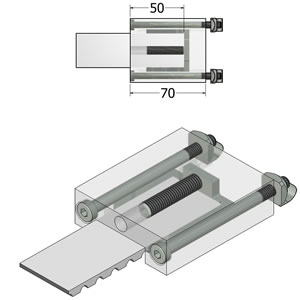

  • Engage timing belt with all belt tensioning plate teeth & slide into back of aluminum housing
  • Press supplied M6 nuts into t-slot of slide
  • Tight M6 screws to nuts for both tensioners
  • Use M8 set screw for final tensioning
