Slide Rail LG

PART No 22.1094
PART No: 22.1094 each
  • Bearing for linear slides LG
  • UHMW plastic bearing for Shaft 12
PART No: 22.1094 Category:

Technical Data / Items Supplied

  • UHMW plastic, black
  • Qty 2, M6x16 set screws
  • Max surface pressure 10N/mm^2
  • Weight – .032 kg

Applications

Assembly Info

  • Slide into profile t-slot
  • Tighten supplied M6 set screws between t-slot bottom & V groove in slide rail on one or both sides
22.1094_Slide_Rail_LG_L
22.1094_Slide_Rail_LG_L
22.1094_Slide_Rail_LG_M
22.1094_Slide_Rail_LG_R

Downloads

3D Step
Solidworks
Inventor

Have a Question About This Product?

We’d love to hear from you!

Get in Touch

Add-On Products

Products that pair well with this item

22.1096_Slide_Rail_LN-S_L

Slide Rail LN-S

Part No 22.1096

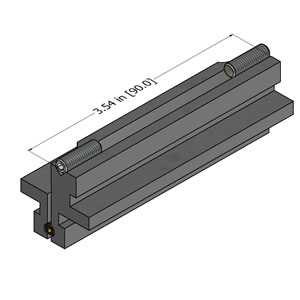

22.1095_Slide_Rail_LN_MP
