Slide Rail LN

PART No 22.1095
PART No: 22.1095 each

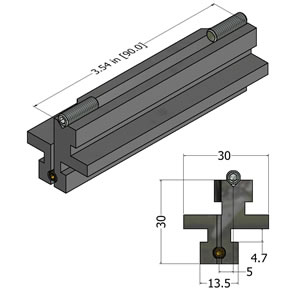

  • Bearing for linear slides LN
  • UHMW plastic bearing designed for sliding in profile t-slot
  • Sliding doors and drawers
PART No: 22.1095 Category:

Technical Data / Items Supplied

  • UHMW plastic, black
  • Qty 2, M5x16 Set Screws With Flat End, Part # 21.1302
  • Qty 2, M4x8 Set Screws With Cone Point, Part # 21.1314
  • Max surface pressure 10N/mm^2
  • Weight – .032 kg

Applications

Assembly Info

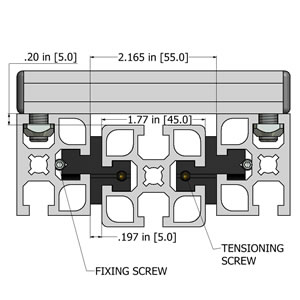

  • Slide V groove side into t-slot of linear slide or sliding door
  • Tighten supplied M6 set screws between t-slot bottom & V groove in slide rail on one or both sides

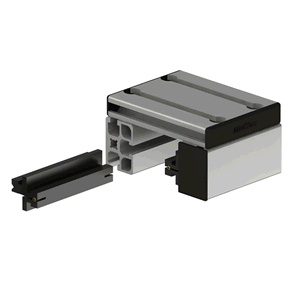

  • Slide side with captive set screw into guide rail
  • Tighten M4 set screw to remove play
22.1095_Slide_Rail_LN_MP
22.1095_Slide_Rail_LN_L
22.1095_Slide_Rail_LN_M
22.1095-Slide_Rail_LWN-X-300
