Swivel Link 30 F

PART No 21.2223
$53.90 each
PART No: 21.2223$53.90 each
  • For use as a hinge
  • For use with 30 series profiles
  • For heavy doors, lids or articulating arms
  • Mount to profile end or t-slot
PART No: 21.2223 Category:

Technical Data / Items Supplied

  • Cast aluminum, powder coated gray
  • Qty 1 M8x22 SHCS
  • Qty 1 M8 Hex Nut
  • Qty4 M8x10 SS Extra Low Head Cap Screw
  • Qty 1 Bushing
  • Qty 4 M8 Nut 30 With Position Fixing
  • Weight – .135 kg

Applications

Assembly Info

  • Mount to 30 series t-slot with supplied hardware.

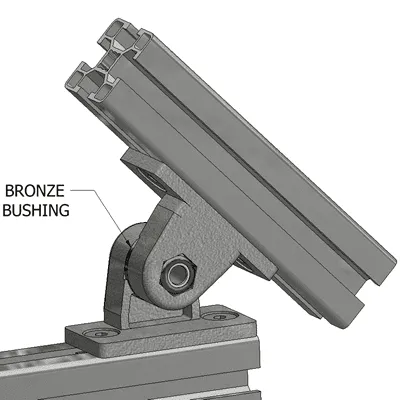

21.2223-Swivel-Link-30-F_MP

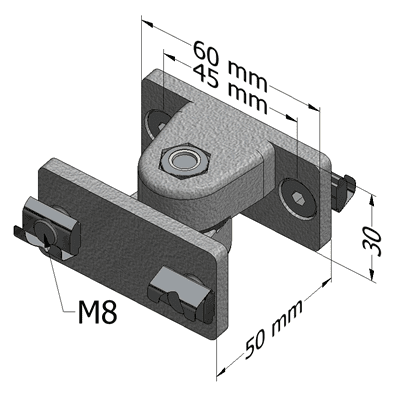

21.2223-Swivel-Link-30-F_L

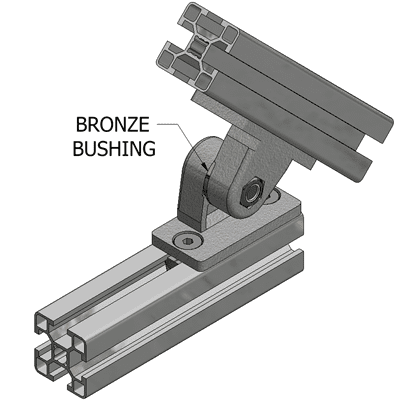

21.2223-Swivel-Link-30-F_M

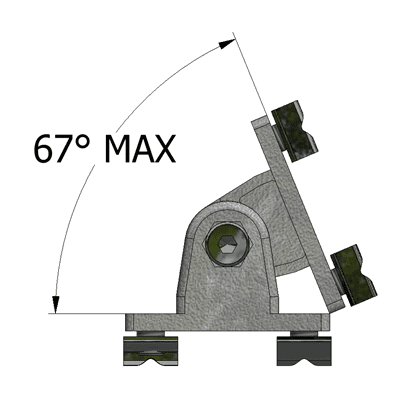

21.2223-Swivel-Link-30-F_R

Downloads

3D Step
Inventor
