Swivel Link 30S Fixable

PART No 21.2225
$72.60 each
PART No: 21.2225$72.60 each
  • For use as a hinge
  • For use with 30 series profiles
  • For heavy doors, lids or articulating arms
  • Clamp creates friction but does not provide a positive lock
  • Mount to profile end or t-slot
PART No: 21.2225 Category:

Technical Data / Items Supplied

  • Cast aluminum, powder coated gray
  • Qty 1 Steel Ratchet Handle
  • Qty 1 M8 Hex Nut
  • Qty 2 M8x10 SS Extra Low Head Cap Screw
  • Qty 1 Bushing
  • Qty 2 M8 Nut 30 With Pos. Fxg.
  • Weight – .176kg

Applications

Assembly Info

  • Mount to 30 series t-slot or remove nut & mount to M8 threaded hole in profile end.

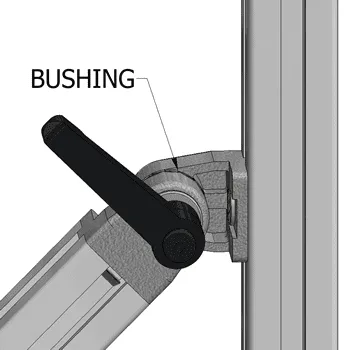

21.2225-SWIVEL-LINK-30-S-FIXABLE_MP

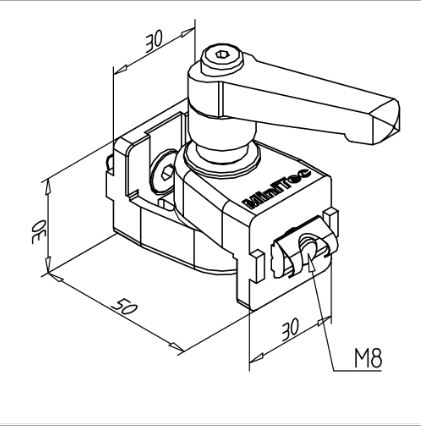

21.2225-SWIVEL-LINK-30S-FIXABLE_L

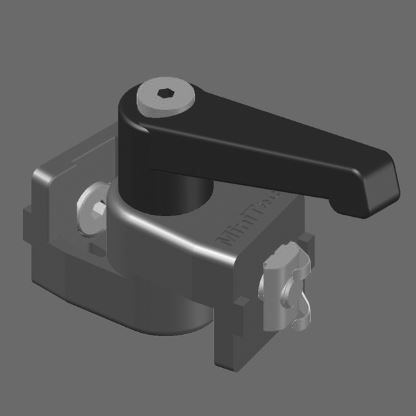

21.2225-SWIVEL-LINK-30S-FIXABLE_M

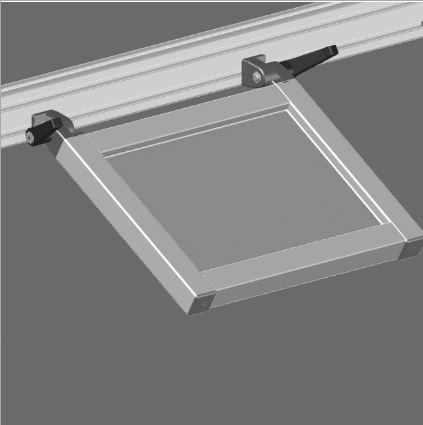

21.2225-SWIVEL-LINK-30S-FIXABLE_R

Downloads

3D Step
Inventor
