Angle 45 GD-Z w/ Pos. Fixing Nuts

PART No 21.1349/7
$6.82 each
PART No: 21.1349/7$6.82 each
PART No: 21.1349/7 Category:

Technical Data / Items Supplied

  • Cast aluminum angle, powder coated gray (RAL # 7012)
  • 2 M8x22 socket head caps screws
  • 2 M8 square nuts with position fixing
  • 2 M8 round washers
  • Removable bottom tabs align profiles and protect against torsion
  • Order with standard nuts using Part # 21.1349
  • Cover cap sold separately, Part # 22.1024/1
  • Weight – .083 kg

Applications

Assembly Info

21.1349_7_Angle_45_GD_Z_MP
21.1349_Angle_45_GD_Z_L
21.1349_7_Angle_45_GD_Z_M
21.1349_7_Angle_45_GD_Z_R
60.9805_THREAD_INSERT_TABLE_MOUNT_1000

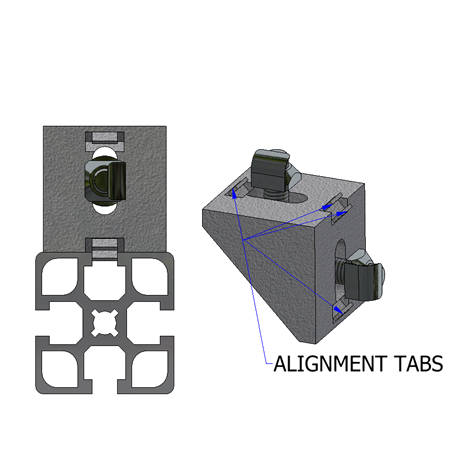

21.1349_7_Angle_45_GD_Z_ALIGNMENT-TABS
21.1349_Angle_45_GD_Z_EXAMPLE2

Downloads

3D Step
Inventor

Have a Question About This Product?

We’d love to hear from you!

Get in Touch

Add-On Products

Products that pair well with this item

22.1204_1Cap_For_Angle_45_GDZ_MP

End Cap For Angle 45 GD-Z

Part No 22.1024/1
21.1349-Angle-45-GD-Photo

Angle 45 GD-Z

Part No 21.1349
21.0818_Power-Lock_SF_MP

Power-Lock Fastener SF

Part No 21.0818

Related Products

Products with similar features & uses

21.1349-Angle-45-GD-Photo

Angle 45 GD-Z

Part No 21.1349

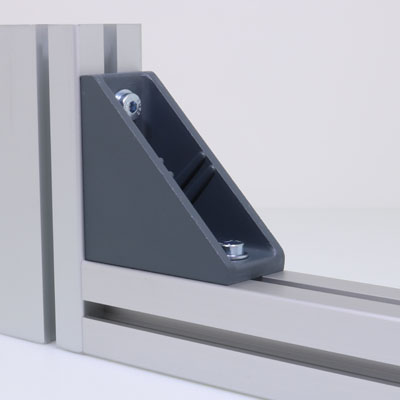

21.1397-ANGLE-45X90-GD-PHOTO
