Angle 45 VA S.S.

PART No 21.0045
$21.23 each
PART No: 21.0045$21.23 each
  • Particlulary useful for subsequent attachment of profiles to existing frames
  • Corrosive and non magnetic applications
  • Can be used over stainless Power-Lock to stiffen joint
PART No: 21.0045 Category:

Technical Data / Items Supplied

  • Stainless steel gusset Material WN DIN 1.4301 X5 CR NI 18 -10, SUS 304,
  • 2 M8x22 18-8 stainless steel socket head cap screws
  • 2 M8 stainless steel square nuts
  • Weight – .204 kg

Applications

Assembly Info

  • Insert square nuts into t-slots
  • Recommended locking torque 20 Nm
  • 22.1024/1 End Cap Sold Separately
21.0045-ANGE-45-STAINLESS_MP

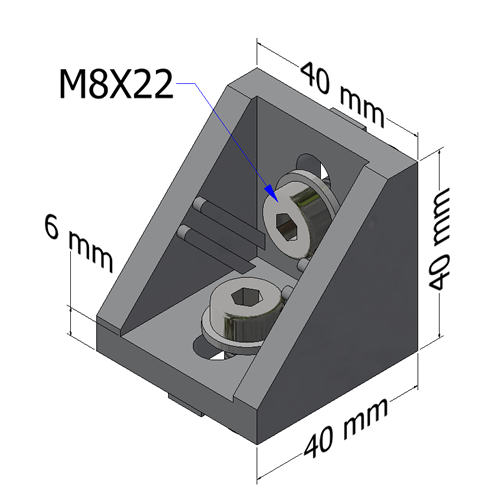

21.0045-ANGE-45-STAINLESS_L

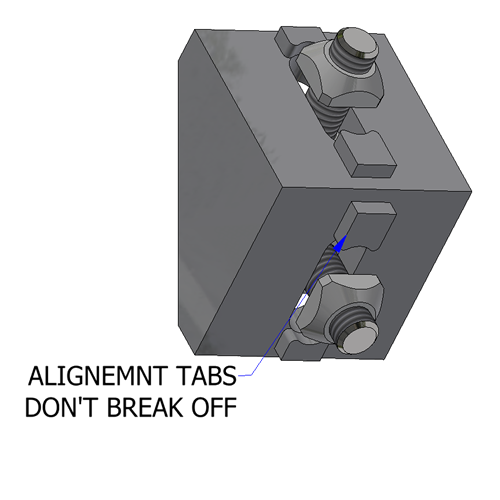

21.0045-ANGE-45-STAINLESS_M

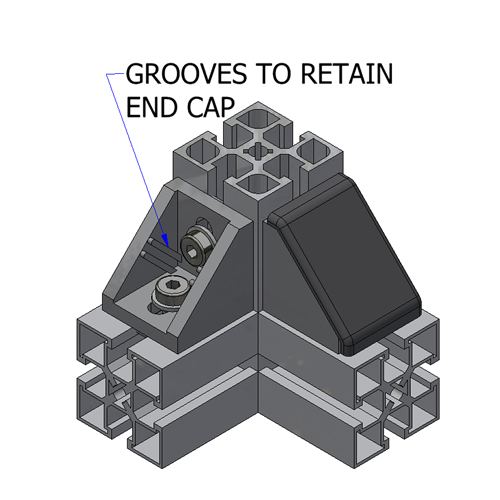

21.0045-ANGE-45-STAINLESS_R

Downloads

3D Step
Solidworks
Inventor
