Angle 90 w/ Pos. Fixing Nuts

PART No 21.0978/7
$25.08 each
PART No: 21.0978/7$25.08 each
  • For profiles 90 & 180 series
  • Can be used over Power-Lock to stiffen joint
  • Mounting frame to floor or wall
PART No: 21.0978/7 Category:

Technical Data / Items Supplied

  • Cast aluminum gusset, powder coated gray
  • Qty 8 M8x22 socket head cap screws
  • Qty 8 M8 round washers
  • Order with standard nuts using part # 21.0978
  • Qty 8 M8 square nuts with position fixing
  • 1 Gray plastic cover sold separately Part # 22.0999/1
  • Weight – .46 kg

Applications

Assembly Info

  • Insert square nuts into t-slots
  • Place washer between screw & gusset
  • Recommended locking torque 20 Nm

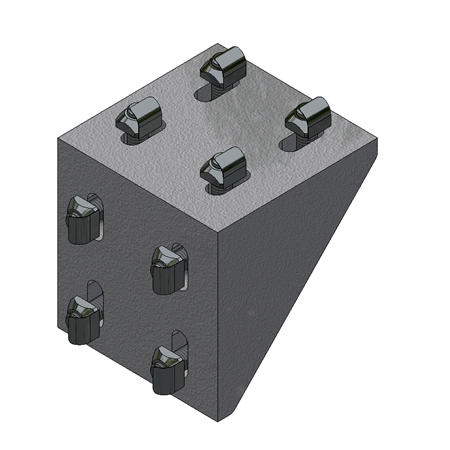

21.0978_7_Angle_90_With_Position_Fixing_Nuts_MP
21.0978_Angle_90_L
21.0978_Angle_90_M
21.0978_7_Angle_90_With_Position_Fixing_Nuts_R

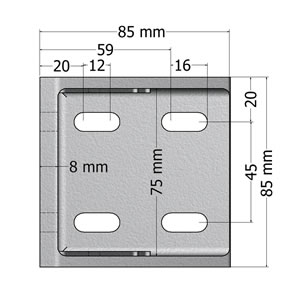

21.0978_Angle_90_R2_PRINT

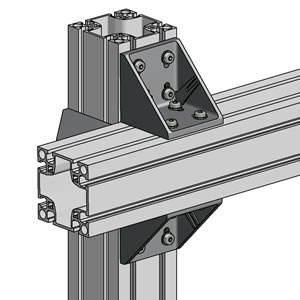

21.0978_Angle_90_R2_EXAMPLE

Downloads

3D Step
Inventor

Have a Question About This Product?

We’d love to hear from you!

Get in Touch

Add-On Products

Products that pair well with this item

22.0999_1_ANGLE_90_COVER_MP

Cover For Angle 90

Part No 22.0999/1

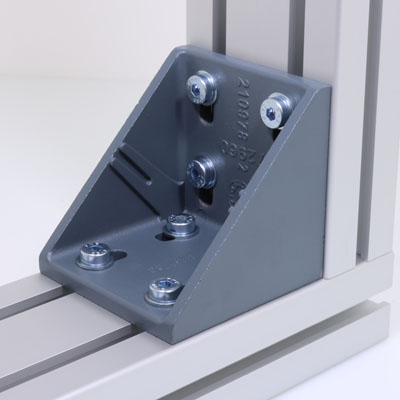

21.0978-Angle-90-Photo
