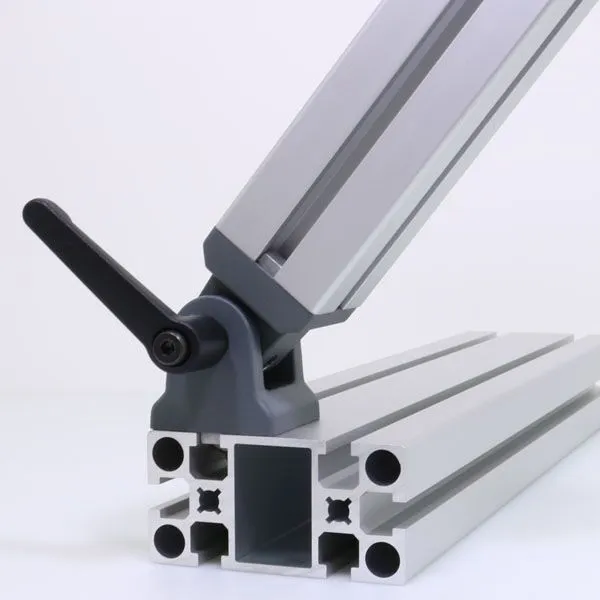

Angle Bracket Swivel Fixed

PART No 21.2010
$62.00 each
PART No: 21.2010$62.00 each
  • Heavy duty doors
  • For vertical pivoting applications use Angle Bracket R
  • Rotates to any angle in 180 degree range
PART No: 21.2010 Category:

Technical Data / Items Supplied

  • Cast aluminum, powder coated gray
  • 2 anti rotation devices
  • 1 M8x50 socket head cap screw
  • 1 M8x20 socket head cap screw
  • 2 M8 square nuts
  • Weight – .28 kg
  • Load max. – 1500 N (337 lbs)

Applications

Assembly Info

  • Mount to t-slot or end hole of profile
  • Remove M8x50 screw from male portion of hinge & tighten M8x20 screw thru bore in male hinge half
  • Re-insert M8x50 screw & fasten to second profile
  • Alternatively each section can be installed separately then re-assembled with side set screws
