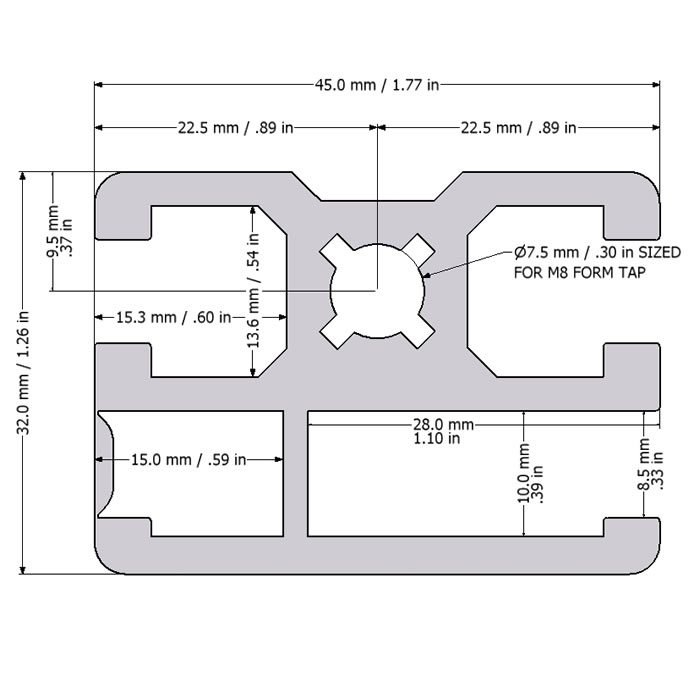

Clamp Profile 45×32

PART No 20.1053
Price range: $0.00 through $1,455.12 each
  • Modular Barrier Guards
  • Machine Enclosures
  • Deep Slot Keeps Mesh From Pushing Out
  • Tool Removeable Guarding Panels

Cost per inch = $1.02

(6.00 meters)

Min = 1.00 in | Max = 236.22 in

A cut fee of $3.30 will be added to each cut piece that's less than the full length.

*This cut length is too costly to ship via normal UPS shipping. Please contact us for a quote.

PART No: 20.1053 Categories ,

Technical Data / Items Supplied

  • 6063 aluminum, clear anodized
  • Order cut precisely to size or in full lengths
  • CNC machining services available
    E-mail prints to: sales@minitecframing.com
  • lx = 6.465 cm4
  •  ly = 9.521 cm4
  •  wx = 3.999 cm3
  • wy = 4.119 cm3
  • Weight 1.615 kg/m
  • For Cut Charge Use Part # 25.1094
  • Full length 6 m
  • Packing unit 48 m

Applications

Assembly Info

20.1053_CLAMP_PROFILE_45X32_MP
20.1053_CLAMP_PROFILE_45X32_L
20.1053_CLAMP_PROFILE_45X32_LRG
20.1053_CLAMP_PROFILE_45X32_R

Downloads

3D Step
Solidworks
Inventor

Have a Question About This Product?

We’d love to hear from you!

Get in Touch

Add-On Products

Products that pair well with this item

22.1193_1-End-Cap-45x32-Clamp-Profile-Gray-Middle

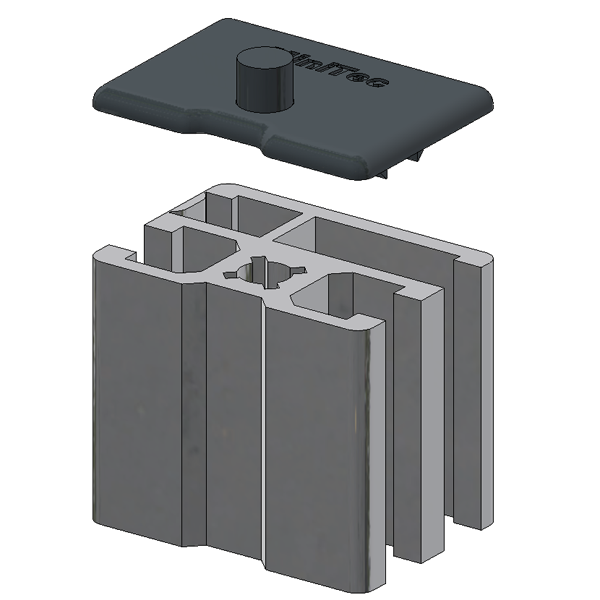

End Cap 45×32 Clamp Profile
