Counterweight 90

PART No 21.1778
$217.80 each
PART No: 21.1778$217.80 each
PART No: 21.1778 Categories ,

Technical Data / Items Supplied

  • Cast lead hardened with antimony

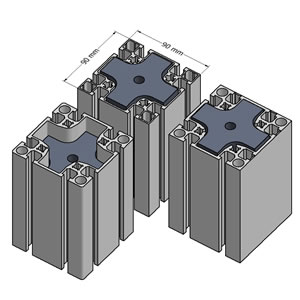

  • For profiles 90×90 UL, 90x90L & 90×90 2G
  • Weight – .385 kg/cm (2.15 lb/in)

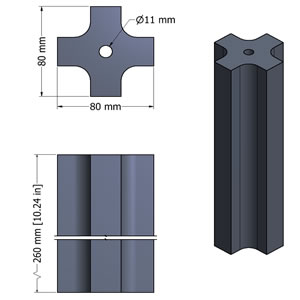

  • Full length – 26 cm (10.24″)
  • Total weight – 10 kg (22.04 lbs)

Applications

Assembly Info

  • Counterweight and door weight are usually the same
  • Cut to size as required using a band saw

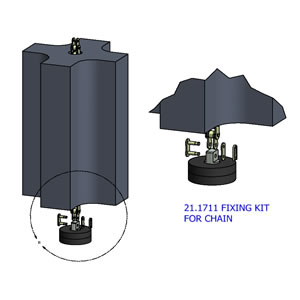

  • Fasten to chain using 21.1711
  • For cable systems use cable 21.1777 (L= 2.5meters or specify)
21.1778_Counterweight_90_L
21.1778_Counterweight_90_L
21.1778_Counterweight_90_M
21.1778_Counterweight_90_R
