End Cap 90 R 90 Aluminum

PART No 22.1021/2
$15.18 each
PART No: 22.1021/2$15.18 each
  • End cover for 90 R 90 profile, P/N 20.1091
  • Especially useful when end cap needs to be removed & installed often
PART No: 22.1021/2 Category:

Technical Data / Items Supplied

  • Aluminum, anodized
  • Thickness 3mm
  • Qty 2, M8x10 SS Ultra Low Head Cap Screw, Part # 21.1666
  • Weight – .063 kg

Applications

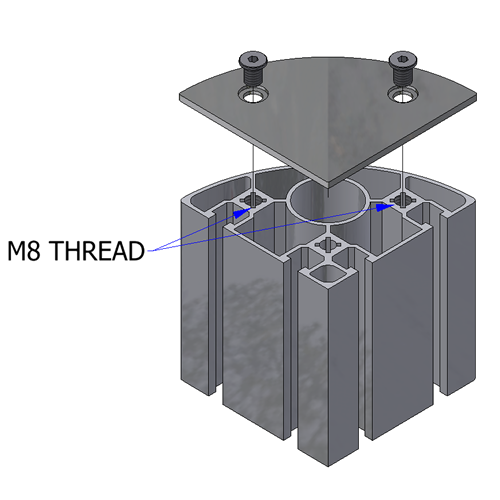

Assembly Info

  • Tap 90 R90 Profile end in two places with M8x1.25 Form Tap, Part # 26.1082
  • Alternatively the screw will also self thread into the hole with a 4mm hex key
  • Screw both M8x10 ultra low head cap screws into profile
22.1021_1_End_Cap_90R90Deg_Gray_R

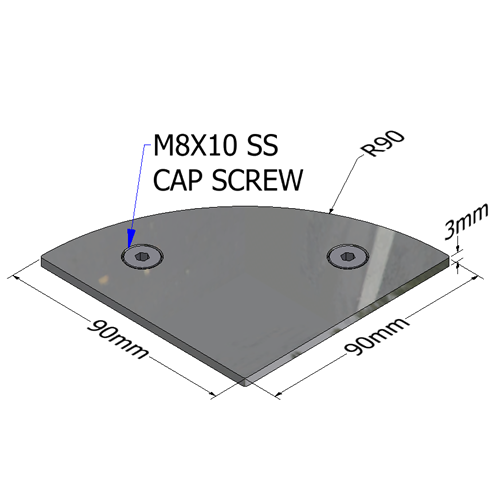

22.1021_2_End_Cap_90R90_Aluminum_L

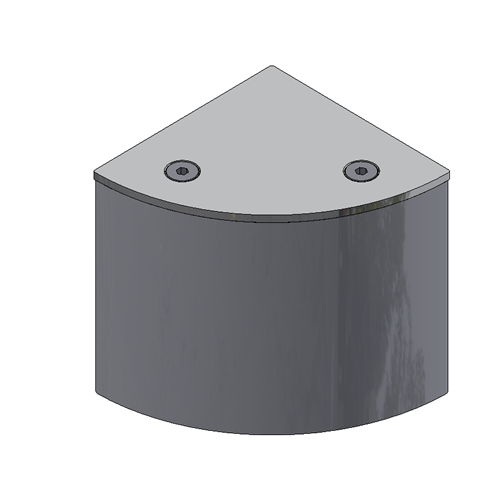

22.1021_2_End_Cap_90R90_Aluminum_M
22.1021_2_End_Cap_90R90_Aluminum_R

Downloads

3D Step
