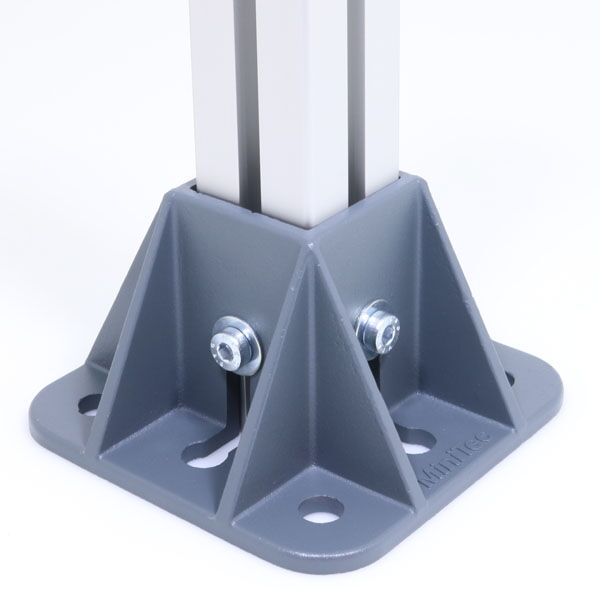

Foot 45 GD

PART No 21.1731
$25.30 each
PART No: 21.1731$25.30 each
  • Use with profiles 45x45mm
  • Securing posts for machine guards, barrier guards and tables
PART No: 21.1731 Category:

Technical Data / Items Supplied

  • Cast aluminum, powder coated gray
  • 4 M8x20 socket head cap screws
  • 4 M8 square nuts with position fixing
  • 4 M8 washers
  • Weight – .587 kg

Applications

Assembly Info

  • Insert profile into foot
  • Press in square nuts & tighten screws
  • Center 4 mounting holes for floor anchors are Ø14mm
21.1731-Foot-45-GD-Photo
21.1731_FOOT_45_GD_L
21.1731_FOOT_45_GD_M
21.1731_FOOT_45_GD_R

Downloads

3D Step
Solidworks
Inventor
