Foot 90 GD

PART No 21.1737
$52.80 each
PART No: 21.1737$52.80 each
  • Use with profiles with at least one 90mm side
  • For 90×90 & 90×180, 2 mounting feet can be used
PART No: 21.1737 Category:

Technical Data / Items Supplied

  • Cast aluminum, powder coated gray
  • 4 M8x20 socket head cap screws
  • 4 M8 square nuts with position fixing
  • 4 M8 washers
  • Floor anchors sold separately
  • Weight – .465 kg

Applications

Assembly Info

  • Insert profile into foot
  • Press in square nuts & tighten screws
  • All 6 holes for floor anchor are Ø17mm

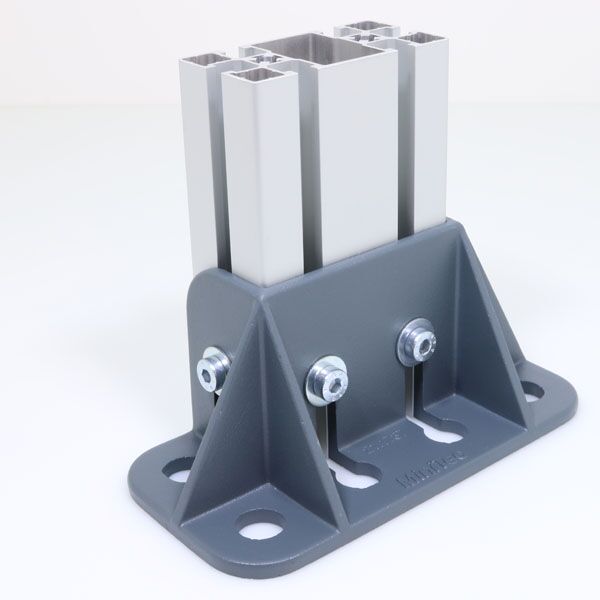

21.1737-Foot-90-GD-Photo
21.1737_FOOT_90_GD_L
21.1737_FOOT_90_GD_M
21.1737_FOOT_90_GD_R

Downloads

3D Step
Solidworks
Inventor
