Guard Unit Fixing Angle 32

PART No 21.1405
$15.73 each
PART No: 21.1405$15.73 each
  • Tool removeable fastening of barrier and machine guard panels
  • Modular post and panel barrier guard design allows perimeter guarding to be easily reconfigured
PART No: 21.1405 Category:

Technical Data / Items Supplied

  • Steel angle, zinc plated
  • 1 M8x20 socket head cap screw
  • 1 M8x16 countersunk screw
  • 2 M8 square nuts with position fixing
  • Weight – .081 kg

Applications

Assembly Info

  • No processing required
  • First connect angle with flathead screw to removeable panel
  • Second attach angles & panel to posts
  • A = 6mm – 25mm

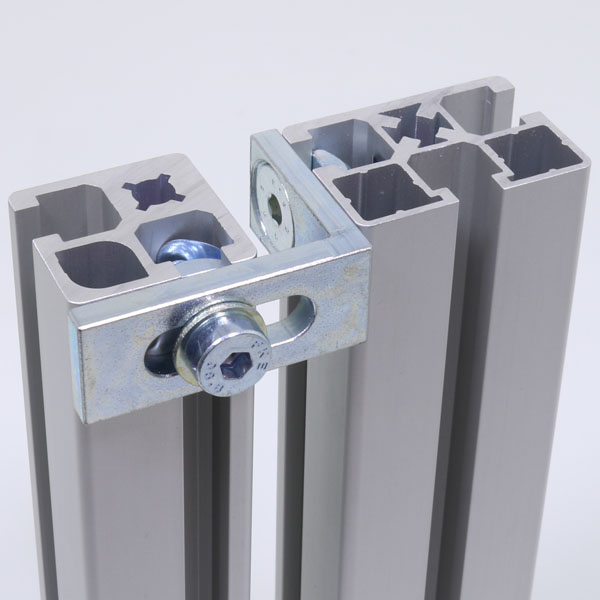

21.1405-Guard-Unit-Fixing-Angle-32-Photo
21.1405_Guard_Unit_Fixing_Angle_32_L
21.1405_Guard_Unit_Fixing_Angle_32_M
21.1405_Guard_Unit_Fixing_Angle_32_R

Downloads

3D Step
Solidworks
Inventor

Have a Question About This Product?

We’d love to hear from you!

Get in Touch

Add-On Products

Products that pair well with this item

21.1399_Guard_Unit_Fixing_Angle_19_MP

Guard Fixing Angle 19

Part No 21.1399
21.1404_Guard_Unit_Fxing_Angle_45_MP

Guard Unit Fixing Angle 45

Part No 21.1404

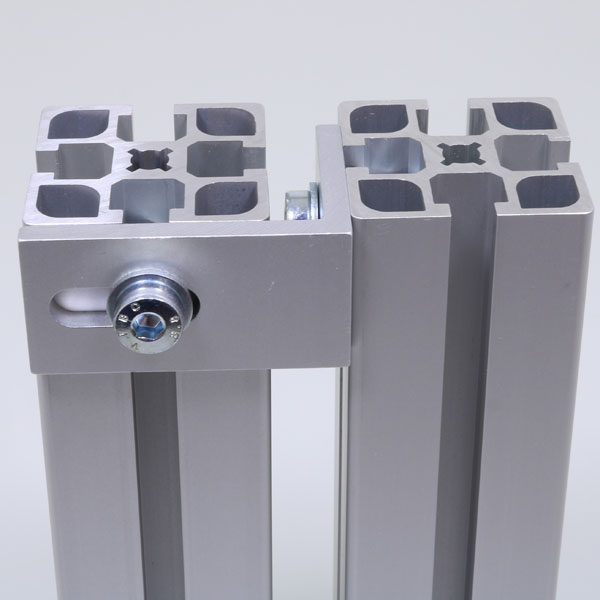

21.1407-GUARD-UNIT-FIXING-ANGLE-45-PHOTO
