Heavy Duty Caster Mounting Plate

PART N^o 21.9406

$46.59 each

PART N^o: 21.9406$46.59 each

Mounting of Heavy Duty 5″ Caster, part # 21.9405

PART No: 21.9406 Category: Casters

Technical Data / Items Supplied

3/4″ aluminum, clear anodized
Qty 2 M8x25 SHCS
Qty 1 M8x30 SHCS
Qty 2 M8 Square Nuts With Position Fixing
Weight – .95kg

Applications

Assembly Info

Tap end hole of vertical profile M8x1.25 using M8 Roll Form Tap 26.1082 & fasten plate to vertical using supplied M8x30 screw
Press M8 square nuts into t-slots & fasten plate to frame using supplied M8x25 screws
Connect caster to plate using M12x25 screws that come with caster.

21.9406_HD_CASTER_MTG_PLT_MP

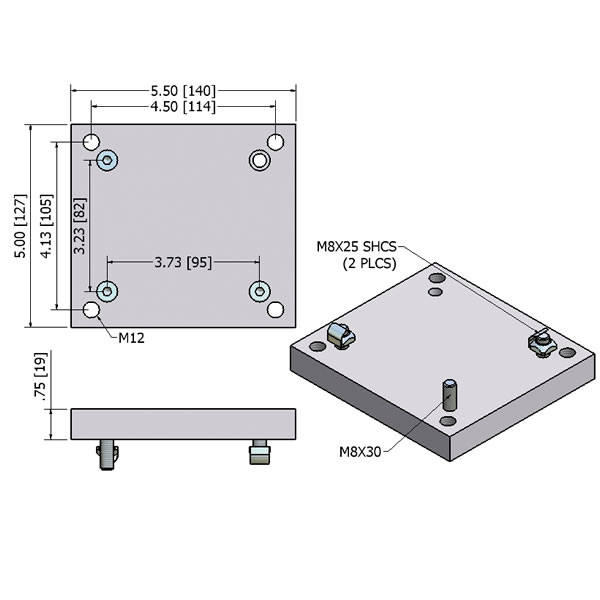

21.9406_HD_CASTER_MTG_PLT_L_LRG

21.9406_HD_CASTER_MTG_PLT_M

21.9406_HD_CASTER_MTG_PLT_R
