M8 Round Shim Stainless

PART N^o 21.1989

$2.42 each

PART N^o: 21.1989$2.42 each

Small diameter washer is required to shim off inner race of LR6 ball bearing so Z shields & outer race don’t contact plate.

PART No: 21.1989 Category: Linear System LR6 Compact

Technical Data / Items Supplied

A2 (18-8) Stainless Steel
Inner Diameter 8.2 mm
Outer Diameter 14 mm
Thickness 1.5mm – 1.6mm

Applications

Assembly Info

Mount between LR6 Bearing & Plate

21.1989_M8_WASHER_FOR_LR6_L

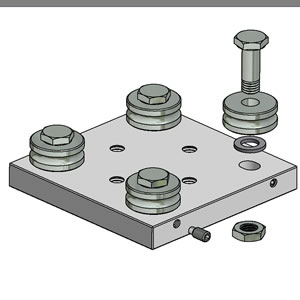

21.1989_M8_WASHER_FOR_LR6_M

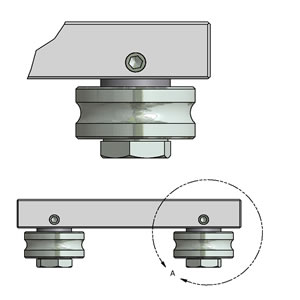

21.1989_M8_WASHER_FOR_LR6_R
