Rail LR 6 Compact

PART N^o 28.0119

$0.00 each

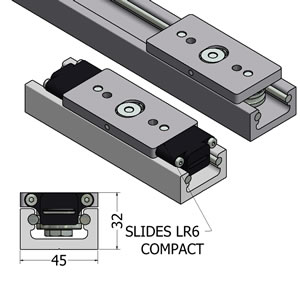

For use with Slide LR6 Compact, Part # 28.0140
Use with Slide LR6 Z Compact, Part # 28.0520 for timing belt driven systems
Especially useful in tight spaces where there isn’t room for a design with the bearings outside of the rails
Sliding doors
Large Drawers

Series

Purchase Options

Clear

Cost per inch = $4.95

Enter Length (inches):

(0.00 meters)

Min = 12.00 in | Max = 0.00 in

A cut fee of $13.31 will be added to each cut piece that's less than the full length.

PART No: 28.0119 Category: Linear System LR6 Compact

Technical Data / Items Supplied

Aluminum, Clear Anodized
2 Steel Shafts Cf 53 h6 Ø6mm

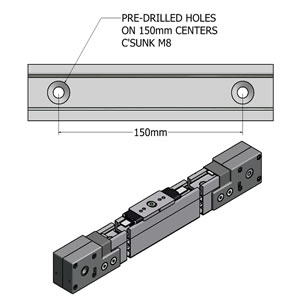

Base Machined For M8 C’ sunk Screws On 150mm Centers
For Cut Charge Use Part # 25.1100
Weight – 1.779 kg/m
Max Length – 6m

Applications

Assembly Info

Fasten rail to with countersunk screws M8x20, Part # 21.1514 & MiniTec Square Nut M8, Part # 21.1351

28.0119_Rail_LR-6-_Compact_L

28.0119_Rail_LR-6-_Compact_M

28.0119_Rail_LR-6-_Compact_R
