Linear Module LR6 Z Compact 45

PART N^o 28.0503

PART N^o: 28.0503 each

Linear positioning & scanning applications
Particularly useful when limited space is available for positioner

PART No: 28.0503 Category: Linear System LR6 Compact

Technical Data / Items Supplied

Specify travel & bore size of drive pulley
E-mail your travel & bore size for a quote today
Click here for load capacity of Linear Slide LR 6 Compact
Max Speed 5m/s
Weight Varies

Applications

Assembly Info

Unit ships assembled
Tension belt using set screw on back side of reverse units
Mount motor to specified bore & key using 28.9110 Adaptor Plate for NEMA 34 motors (Sold Separately)

28.0503_LR_6_Z_COMPACT_45_L

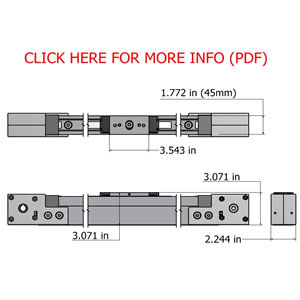

28.0503_LR_6_Z_COMPACT_45_M

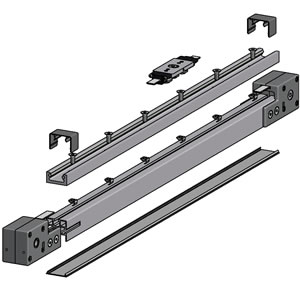

28.0503_LR_6_Z_COMPACT_45_R

Downloads

Have a Question About This Product?

We’d love to hear from you!

Add-On Products

Products that pair well with this item

Timing Belt 16 AT 5

Part N^o 28.0502

Related Products

Products with similar features & uses

Concentric Bolt LR 6

Part N^o 28.0240

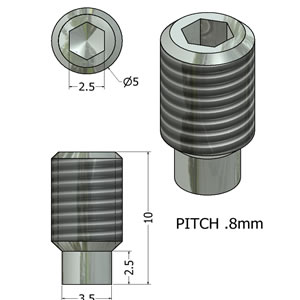

M5x10 Set Screw Dog Point Zinc Plated
