M8 Square Econo-Nut 30

PART No 21.9180
$0.20 each
PART No: 21.9180$0.20 each
  • Fastening to 30 series t-slots
PART No: 21.9180 Category:

Technical Data / Items Supplied

  • Steel, zinc plated
  • Threaded M8x1.25
  • Weight -.004 kg

Applications

Assembly Info

  • Slide nut in from end of profile
  • Use 21.1570 when end access is not available
  • Use 21.1570 if position fixing is desired
  • For 1/8″ thick parts use 12mm long M8 cap screw, Part # 21.1264
  • For 1/4″ thick parts use a 16mm long M8 cap screw Part # 21.1200 & An M8 Round Washer 21.1127
21.9180_M8_Square_Econo_Nut_30_MP
21.9180_M8_Square_Econo_Nut_30_L
21.9180_M8_Square_Econo_Nut_30_M
21.9180_M8_Square_Econo_Nut_30_R

Downloads

3D Step
Solidworks
Inventor

Have a Question About This Product?

We’d love to hear from you!

Get in Touch

Add-On Products

Products that pair well with this item

21.1570_M8_Square_Nut_30_MP

M8 Square Nut 30 With Pos FX

Part No 21.2343/2
21.1569_M6_Square_Nut_30_MP

M6 Square Nut 30 With Pos FX

Part No 21.2342/2
21.9180_M8_Square_Econo_Nut_30_MP

M8 Square Econo-Nut 30 SS

Part No 21.9180/1

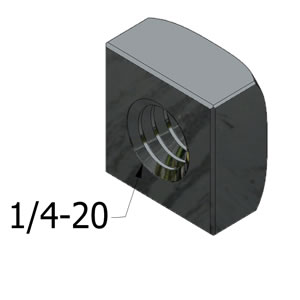

21.9041_Quarter-20_Square_Econonut_MP
