M8 x 15 Thread Insert

PART No 60.9086
$1.76 each
PART No: 60.9086$1.76 each
  • Secure mounting of table top & panels that are a least 3/4″ thick
  • Often used to mount table tops made from 3/4″ thick polyethylene, part #’s 21.9563, 21.9564 & 21.9565
  • Often used to mount hard & soft wood panels at least 3/4″ thick
PART No: 60.9086 Categories , ,

Technical Data / Items Supplied

  • Steel, zinc plated
  • No tapping required. This insert self threads
  • Internal Thread M8x1.25
  • Length 15mm
  • Hex drive 8 mm

Applications

Assembly Info

  • Drill hole Ø12.2mm – Ø12.8mm(.48″ – .504″) depending on material. For extremely soft woods hole dia. as low as Ø12mm can be used

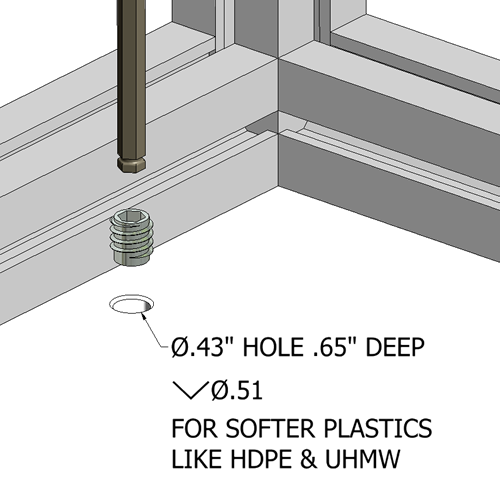

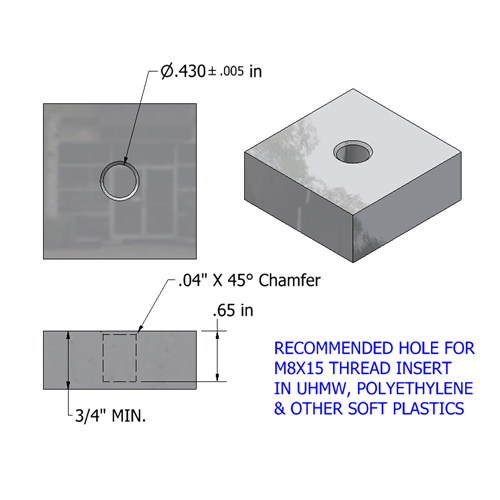

  • For Polyethylene & UHMW plastic, drill a .65″ DP hole between Ø.455″ – & Ø.465″ with a light chamfer to reduce bulge created by self tapping insert. Click here to see print.
  • Often mounted to MiniTec Frame using Angle 45 GD 21.1349
  • Tighten screw using 8mm hex key
60.9085_M8x15_THREAD_INSERT_MP_FASTENERS
60.9085_M8x15_THREAD_INSERT_L
60.9085_M8x15_THREAD_INSERT_M
60.9805_THREAD_INSERT_TABLE_MOUNT_250X3

Downloads

3D Step
Solidworks
Inventor
