M8x20 Cap Screw

PART No 21.1202
$0.34 each
PART No: 21.1202$0.34 each
  • Connecting profiles at right angles
  • Particularly use full when Power-Lock will interfere with a panel
  • Use full in high volume applications to reduce fastener cost
  • This fastener does not protect against profile rotation.
PART No: 21.1202 Category:

Technical Data / Items Supplied

  • M8x20 Socket Head Cap Screw, Zinc Plated
  • DIN – 7984
  • Class -8.8
  • Dia. -8mm
  • Length -20mm
  • Pitch -1.25mm
  • Hex Drive -5mm

Applications

Assembly Info

  • Thread profile M8x1.25, 25mm Deep
  • Drill Ø7 mm hole thru so 5mm hex key can access screw head.
  • Hole can be covered with 7mm cap, part # 22.1200/1

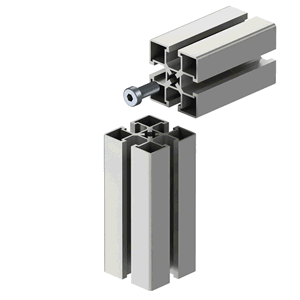

21.1202_M8X20_Profile_Fastener_300
21.1202_M8X20_Profile_Fastener_L
21.1202_M8X20_Profile_Fastener_M

Downloads

3D Step
Solidworks
Inventor
