Slide Bar 8 N 30

PART No 22.1170
Price range: $0.00 through $97.01 each
  • Horizontal or vertical sliding doors made from 30 series profiles
  • Linear slides
  • Sliding drawers

Cost per inch = $1.23

(2.00 meters)

Min = 12.00 in | Max = 78.74 in

A cut fee of $1.65 will be added to each cut piece that's less than the full length.

*This cut length is too costly to ship via normal UPS shipping. Please contact us for a quote.

PART No: 22.1170 Category:

Technical Data / Items Supplied

  • UHMW Plastic Slide Bar Black
  • Extremely low friction & wear resistant
  • Order cut precisely to size +/- .010″
  • For cut charge use part # 25.1093
  • Full Length – 2m (78.74″)
  • Weight – .178kg/m

Applications

Assembly Info

  • Slide into profile from an exposed end
  • Self thread M4 x 16 set screw, Part # 21.1314/1 (sold separately)between v groove on plastic guide & the t-slot bottom of profile to fix

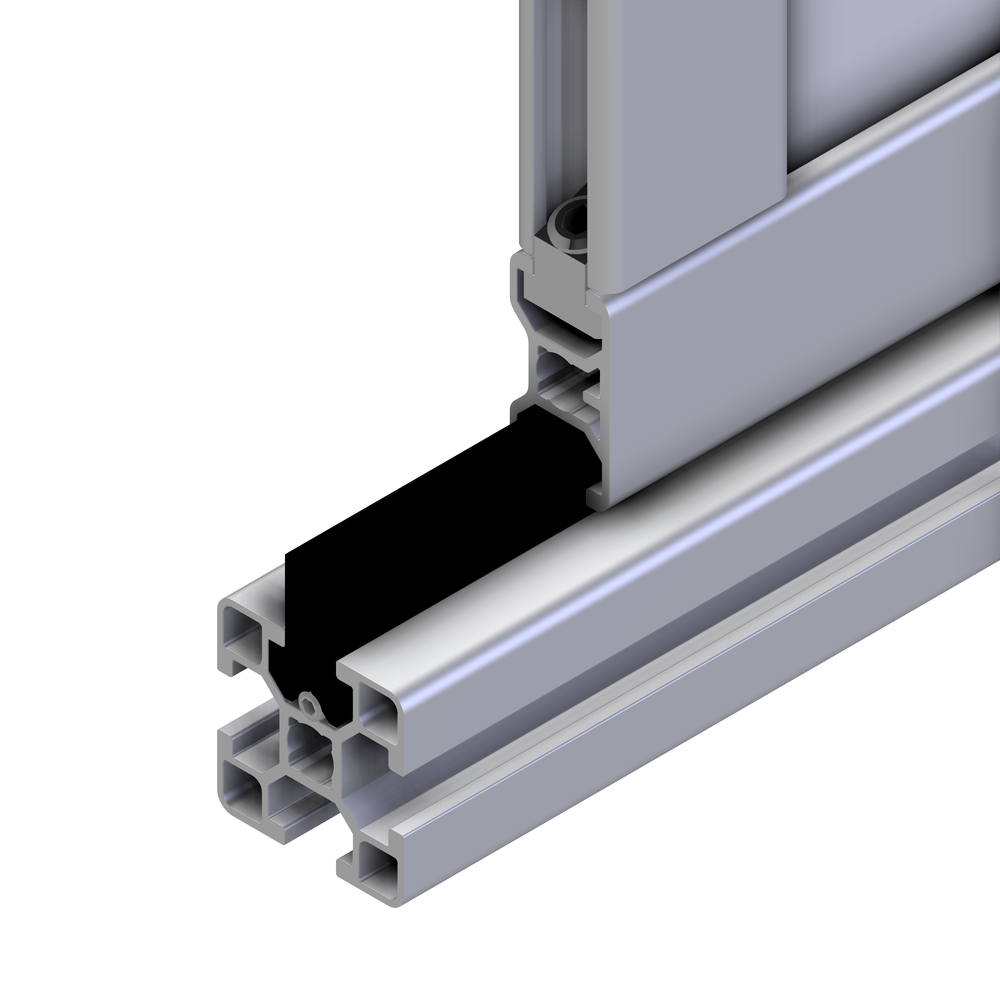

22.1170_Slide-Bar_8N_M

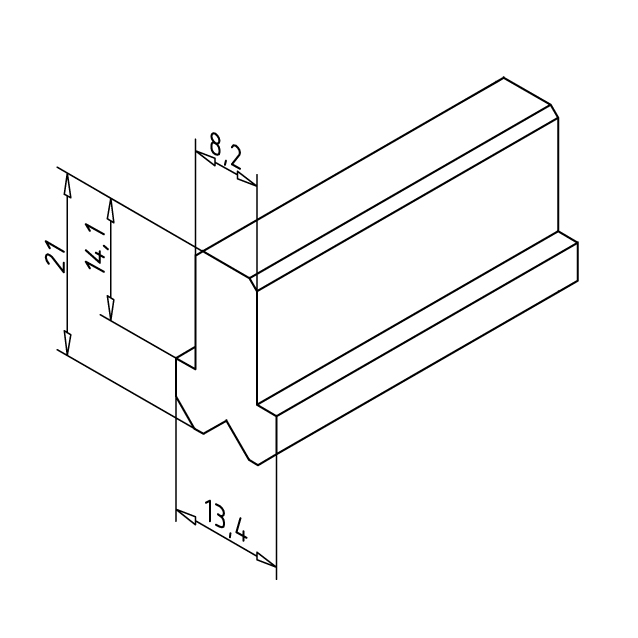

22.1170_Slide-Bar_8N_L

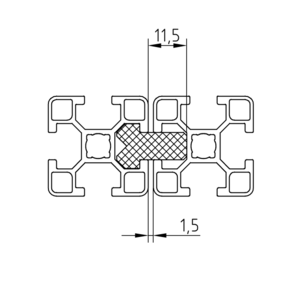

22.1170_Slide-Bar_8N_R

Downloads

3D Step
Inventor

Have a Question About This Product?

We’d love to hear from you!

Get in Touch

Add-On Products

Products that pair well with this item

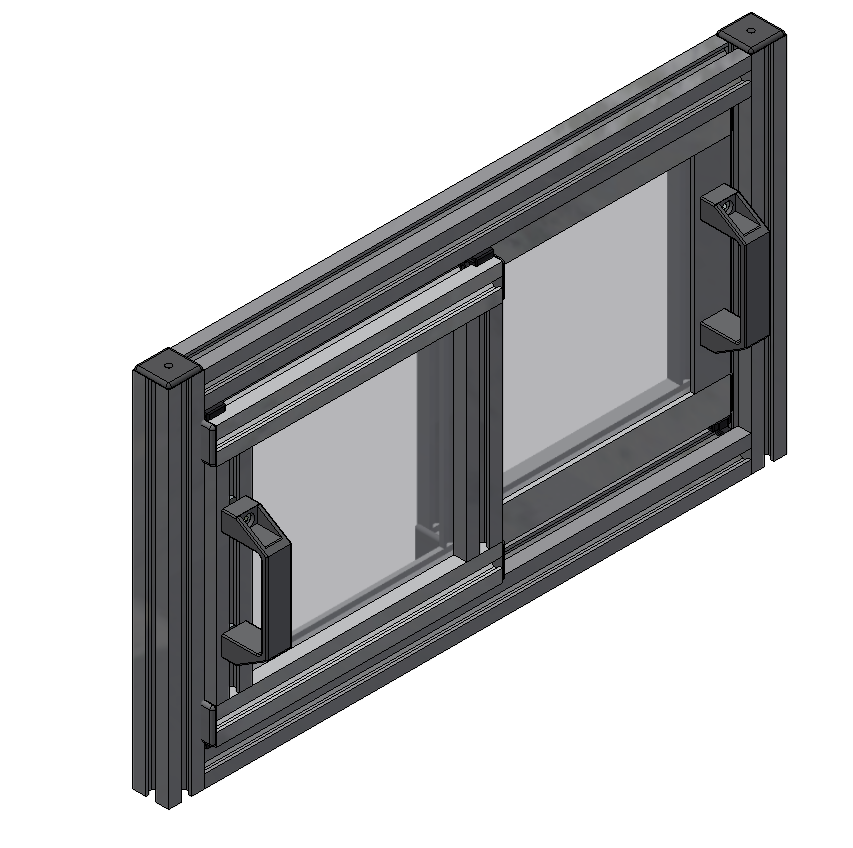

22.1184-GUIDE-FOR-SLIDING-DOOR-30-V_R

Guide for Sliding Door 30

Part No 22.1184

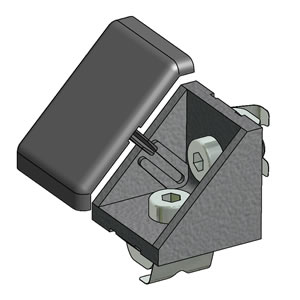

22.0989_1_Cover_Angle_30_GD-Z_MP
